Schneider 3G-OTH-36846 — Spesifikasi Teknis

Name: Schneider 3G-OTH-36846 SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, DPDT, 8 Pins/Terminals (MPN 788XBXRM4L-12D). Key specifications — Brand: SCHNEIDER; Base Type: Square; Mounting Style: Plug-In; Pin Shape: Flat; Electrical Connection: Blade Terminal; Manufacturer Part Number: 788XBXRM4L-12D; Operating Current: 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC); Series: 788R Series.
Brand: Schneider

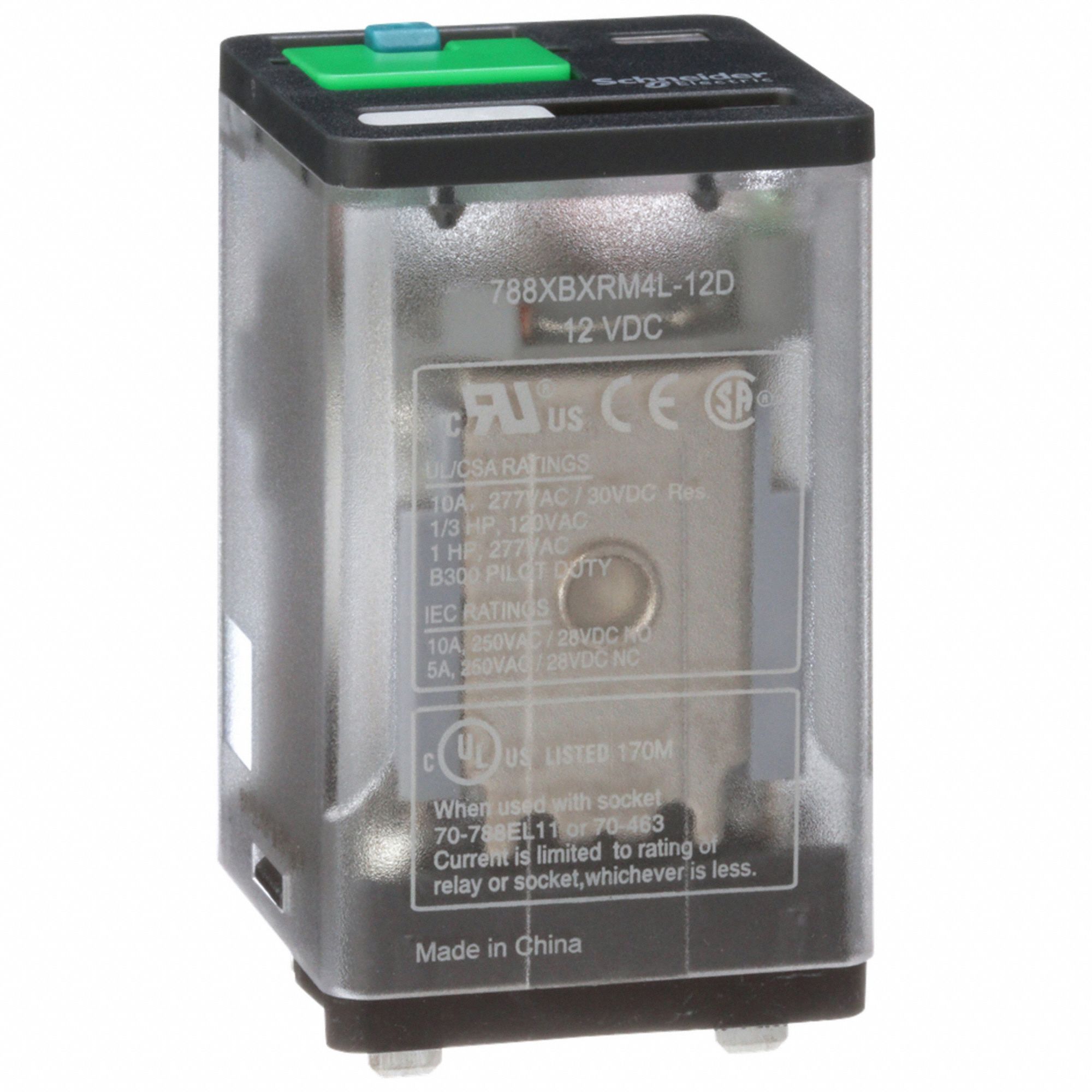

The SCHNEIDER General Purpose Relay: Socket Mounted is a plug-in relay from the 788R Series with a square base and flat pins. It features a DPDT contact configuration, a 12V DC coil, and an operating current of 10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC). The relay uses blade terminals for electrical connection and is identified by manufacturer part number 788XBXRM4L-12D.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
DC	12V
Type	DPDT
Brand	SCHNEIDER
Series	788R Series
Base Type	Square
Pin Shape	Flat
Current Rating	10 A
Mounting Style	Plug-In
Pins/Terminals	8
Operating Current	10 A at 28V DC-1 (1 NO Resistive Load Conforming to IEC)
Electrical Connection	Blade Terminal
Manufacturer Part Number	788XBXRM4L-12D
