Schneider 3G-OTH-41568 — Spesifikasi Teknis

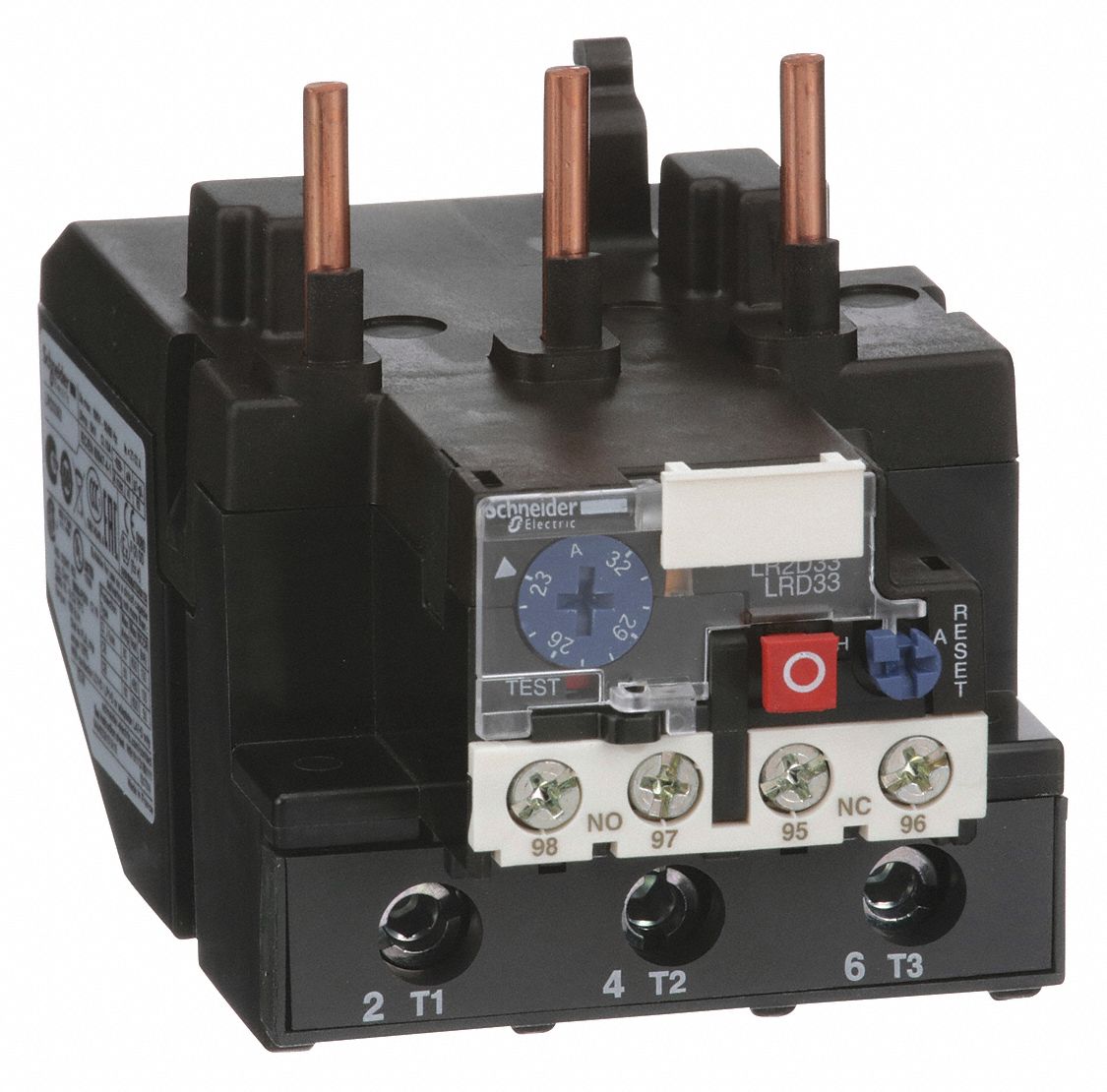

The SCHNEIDER LRD3353 is an IEC thermal overload relay from the TeSys Deca series, designed for use with compatible TeSys Deca contactors (80 to 95 Amp models). It features integrated bimetallic elements (no external thermal units required), a 1NO/1NC auxiliary contact form, phase loss sensitivity, screw clamp terminals, and a maximum voltage rating of 1000V AC.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 23 A – 32 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (80 to 95 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 1000V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LRD3353 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
