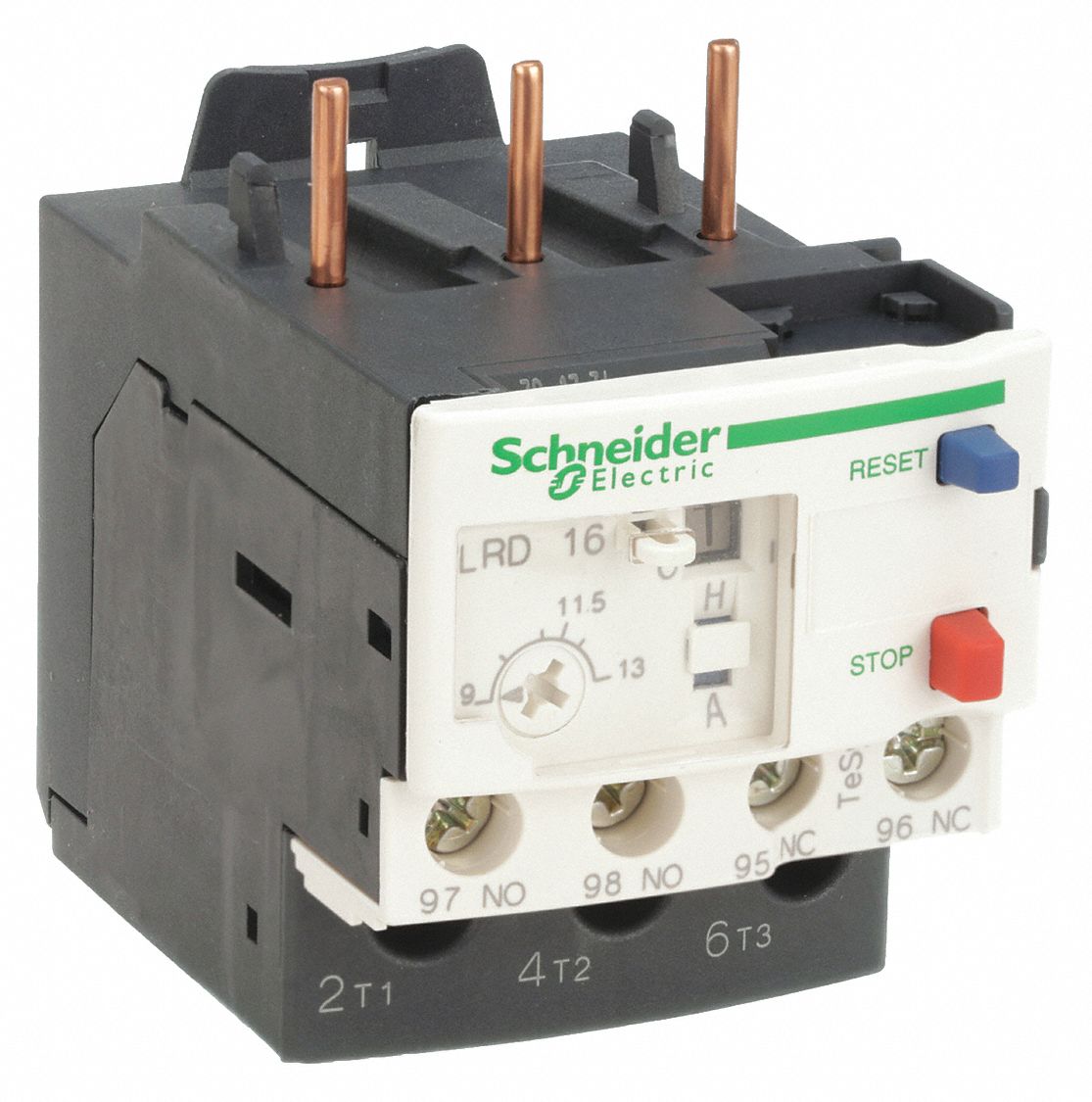

Schneider 3G-OTH-41340 — Spesifikasi Teknis

Name: Schneider 3G-OTH-41340 SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity (MPN LRD16). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Deca; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: TeSys Deca (12 to 38 Amp Models).
Brand: Schneider

The SCHNEIDER LRD16 is a three-pole IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and a maximum voltage rating of 690V AC. Designed for phase loss sensitivity, it is compatible with TeSys Deca contactors in the 12 to 38 Amp models.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Phase Loss Sensitivity
Brand	SCHNEIDER
Poles	3
Compatible Contactors	TeSys Deca (12 to 38 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	LRD16
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	TeSys Deca
