Schneider 3G-OTH-39090 — Spesifikasi Teknis

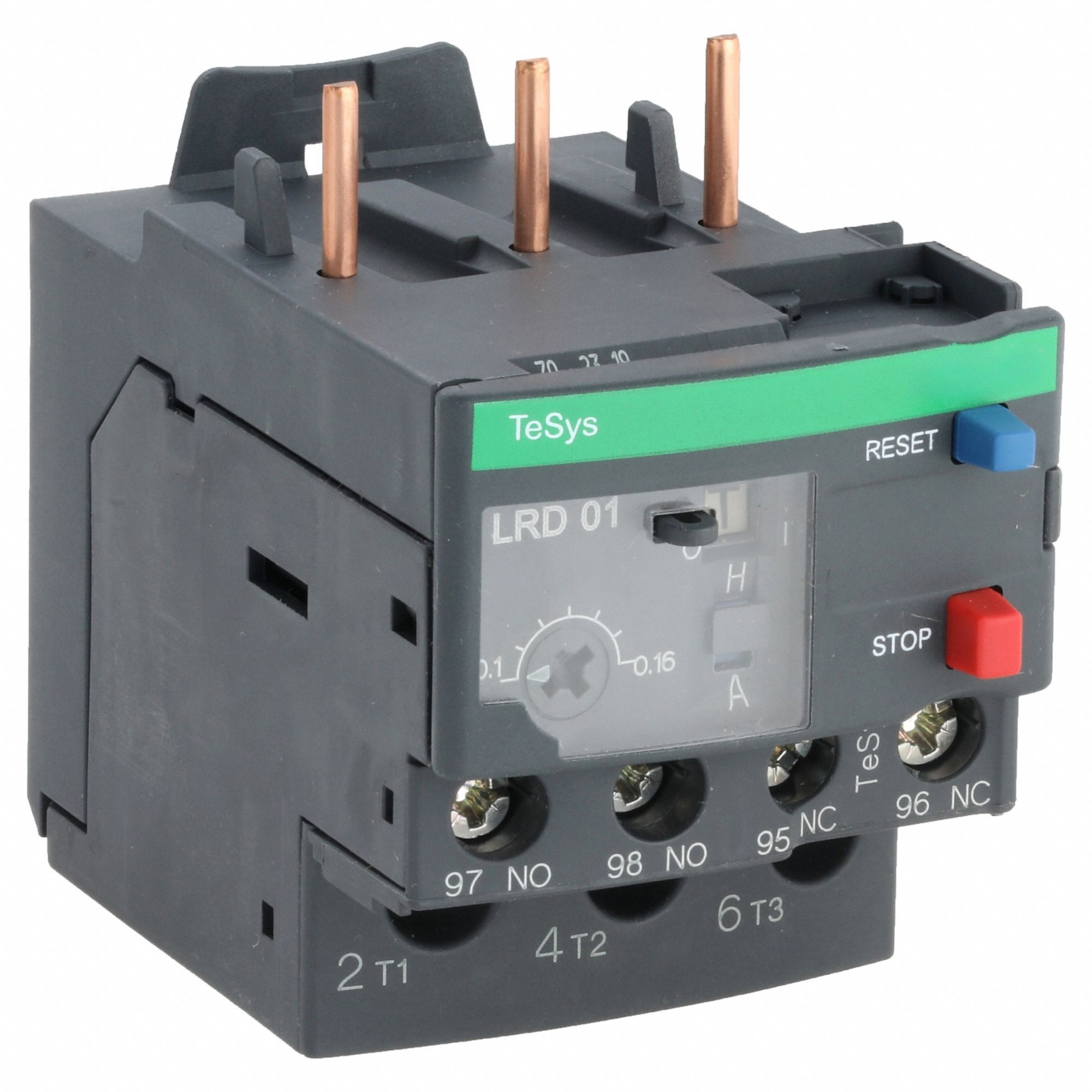

Name: Schneider 3G-OTH-39090 SCHNEIDER Overload Relay: Thermal Protection, 3 Poles, 1NO/1NC, Phase Loss Sensitivity (MPN LRD01). Key specifications — Brand: SCHNEIDER; Auxiliary Contact Form: 1NO/1NC; Compatible Contactor Series: TeSys Deca; Terminal Connection Type: Screw Clamp Terminals; Maximum Voltage Rating: 690V AC; Phase Loss Sensitivity: Yes; Thermal Units Required: None (Relay Includes Integrated Bimetallic Elements); Compatible Contactors: TeSys Deca (9 to 38 Amp Models).
Brand: Schneider

The SCHNEIDER Overload Relay: Thermal Protection (MPN LRD01) is an IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features a 1NO/1NC auxiliary contact form, screw clamp terminals, and a maximum voltage rating of 690V AC. This 3-pole relay includes phase loss sensitivity and is compatible with TeSys Deca contactors in the 9 to 38 Amp models.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Phase Loss Sensitivity
Brand	SCHNEIDER
Poles	3
Compatible Contactors	TeSys Deca (9 to 38 Amp Models)
Auxiliary Contact Form	1NO/1NC
Maximum Voltage Rating	690V AC
Phase Loss Sensitivity	Yes
Thermal Units Required	None (Relay Includes Integrated Bimetallic Elements)
Manufacturer Part Number	LRD01
Terminal Connection Type	Screw Clamp Terminals
Compatible Contactor Series	TeSys Deca
