Schneider 3G-OTH-37249 — Spesifikasi Teknis

Name: Schneider 3G-OTH-37249 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 2 Positions, Extended Lever, DPDT (MPN 9001SKS11FBH2). Key specifications — AC Contact Rating: 1.5 A @ 480 V; Action: Maintained/Maintained; Cam: E; DC Contact Rating: 0.27 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

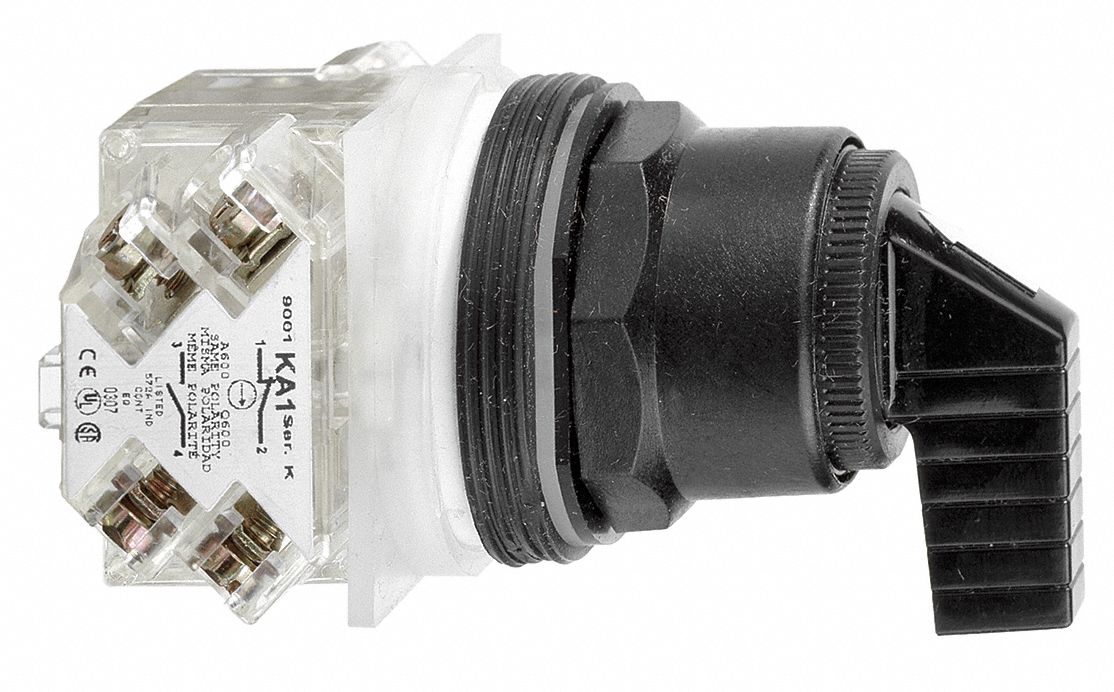

The SCHNEIDER 9001K Series Selector Switch (SKU 45J165, MPN 9001SKS11FBH2) is a 30 mm panel-mount, non-illuminated, long-handled knob operator with a polycarbonate head and non-metallic bezel. It features a maintained/maintained action with two positions (Off/On), Cam E, and DPDT contacts rated at 1.5 A @ 480 V AC and 0.27 A @ 250 V DC. This switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	E
Type	Extended Lever, DPDT
Brand	SCHNEIDER
Action	Maintained/Maintained
Series	9001K
Positions	2
AC Contact Rating	1.5 A @ 480 V
DC Contact Rating	0.27 A @ 250 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS11FBH2
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	Off
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	No Third Position
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
