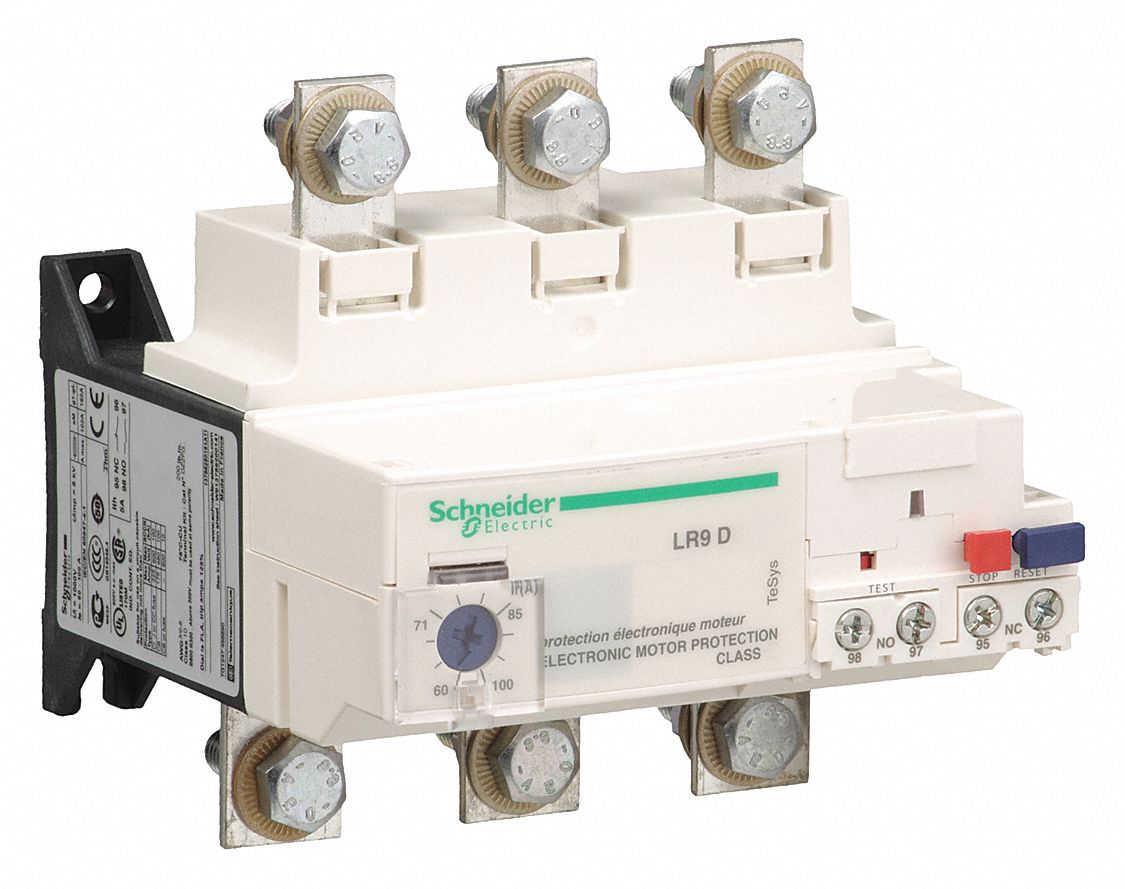

Schneider 3G-OTH-42552 — Spesifikasi Teknis
The SCHNEIDER Overload Relay: Thermal Protection (MPN LR9D5369) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, eliminating the need for separate thermal units. It features 1NO/1NC auxiliary contacts, screw clamp terminals, and phase loss sensitivity, with a maximum voltage rating of 690V AC. This relay is compatible with TeSys Deca contactors (115 to 150 Amp models).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 90 A – 150 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (115 to 150 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LR9D5369 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
