Schneider 3G-OTH-34734 — Spesifikasi Teknis

Name: Schneider 3G-OTH-34734 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Extended Lever, 1NO/1NC (MPN 9001SKS42FBH21). Key specifications — AC Contact Rating: 6 A @ 120 V; Action: Maintained/Maintained/Maintained; Cam: B; DC Contact Rating: 0.1 A @ 600 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Long-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

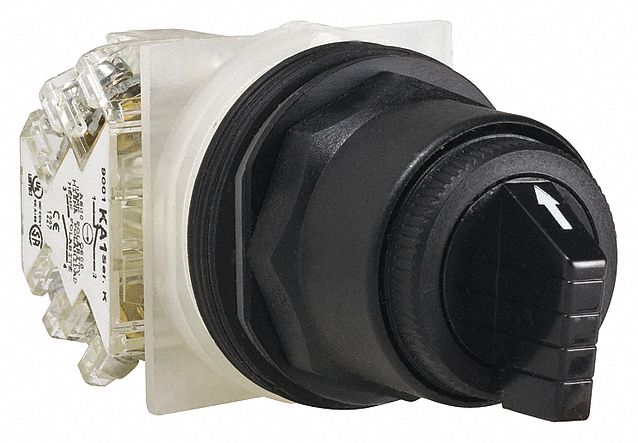

The SCHNEIDER Selector Switch is a 30 mm panel-mounting-size selector switch from the 9001K Series, featuring a long-handled knob with a non-illuminated polycarbonate operator head and a non-metallic bezel. It offers three maintained positions (On/Off/On) with a Cam B action, and its AC contact rating is 6 A @ 120 V with a DC contact rating of 0.1 A @ 600 V. This switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	B
Type	Extended Lever, 1NO/1NC
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	6 A @ 120 V
DC Contact Rating	0.1 A @ 600 V
Operator Head Type	Long-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS42FBH21
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
