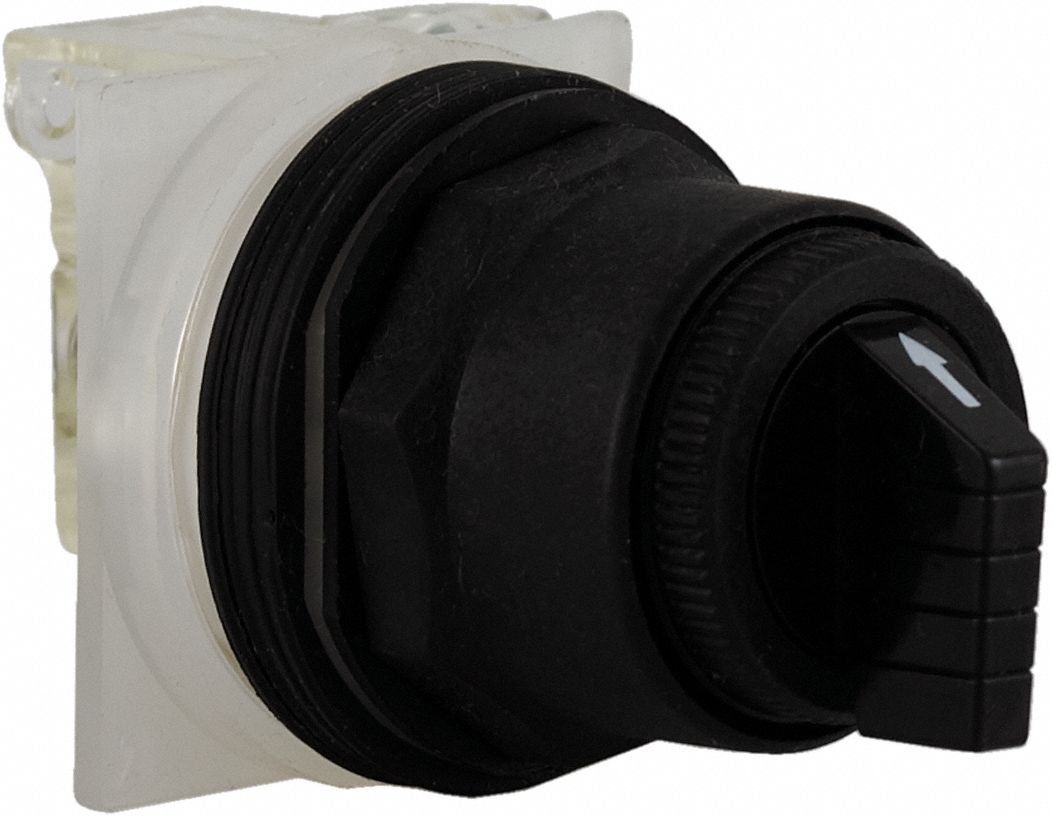

Schneider 3G-OTH-36694 — Spesifikasi Teknis

Name: Schneider 3G-OTH-36694 SCHNEIDER Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, SPDT, Non-Metallic (MPN 9001SKS43BH1). Key specifications — AC Contact Rating: 3 A @ 240 V; Action: Maintained/Maintained/Maintained; Cam: C; DC Contact Rating: 0.27 A @ 250 V; Hazardous Location Specification: Not Rated; Operator Head Material: Polycarbonate; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider

The SCHNEIDER Selector Switch (SKU 5CFJ3) is a 30 mm panel-mounting selector switch from the 9001K series, featuring a short-handled knob and a non-metallic bezel. It offers three maintained positions (On/Off/On) with a C cam and SPDT action, rated at 3 A @ 240 V AC and 0.27 A @ 250 V DC. The operator head is made of polycarbonate and is non-illuminated, with no hazardous location rating.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	C
Type	Short Lever, SPDT, Non-Metallic
Brand	SCHNEIDER
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	3 A @ 240 V
DC Contact Rating	0.27 A @ 250 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Polycarbonate
Manufacturer Part Number	9001SKS43BH1
Switch Bezel Material Type	Non-Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	Off
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
