Schneider 3G-OTH-40014 — Spesifikasi Teknis

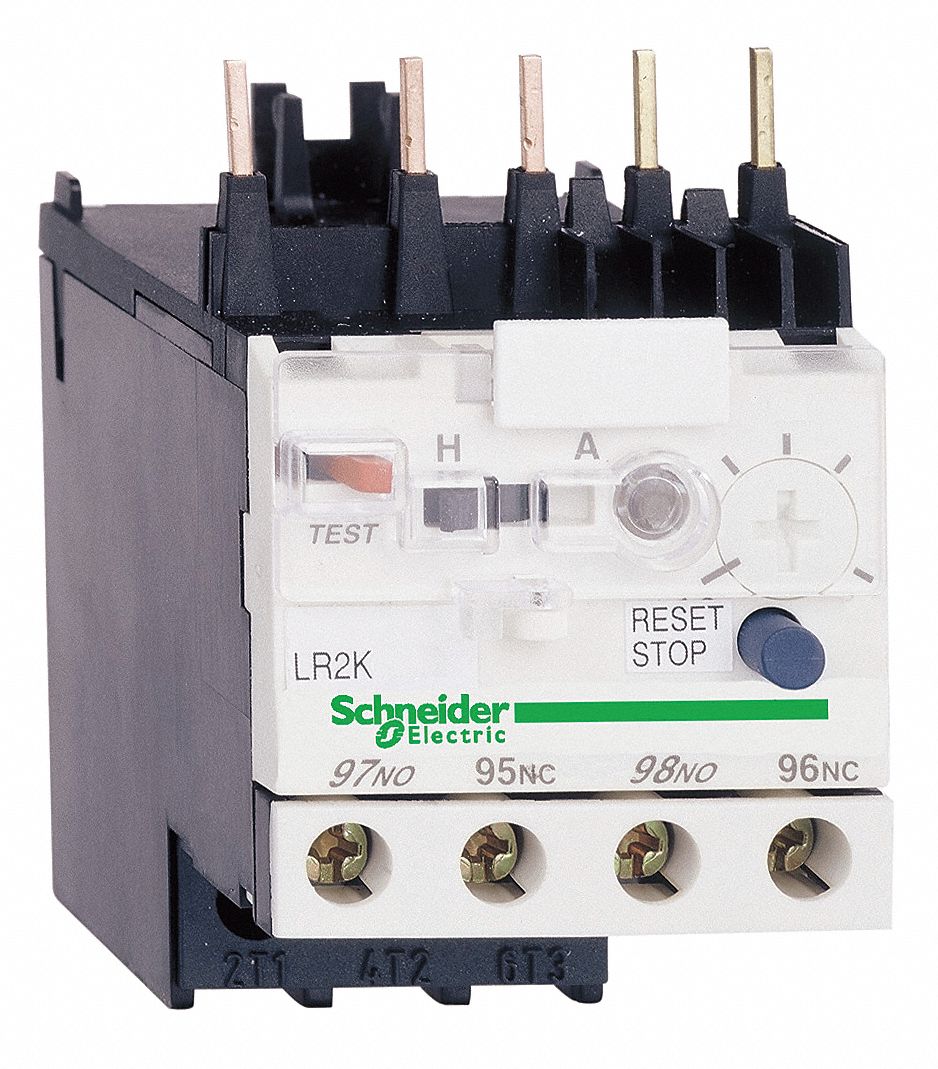

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2K0305) is an IEC thermal overload relay designed for use with TeSys K contactors. It features 1NO/1NC auxiliary contacts, a maximum signaling circuit voltage rating of 250V DC, and phase loss sensitivity. The relay includes integrated bimetallic elements, eliminating the need for separate thermal units, and uses screw clamp terminals for connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys K Models |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 250V DC (Signaling Circuit) |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LR2K0305 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys K |
