Schneider 3G-OTH-40430 — Spesifikasi Teknis

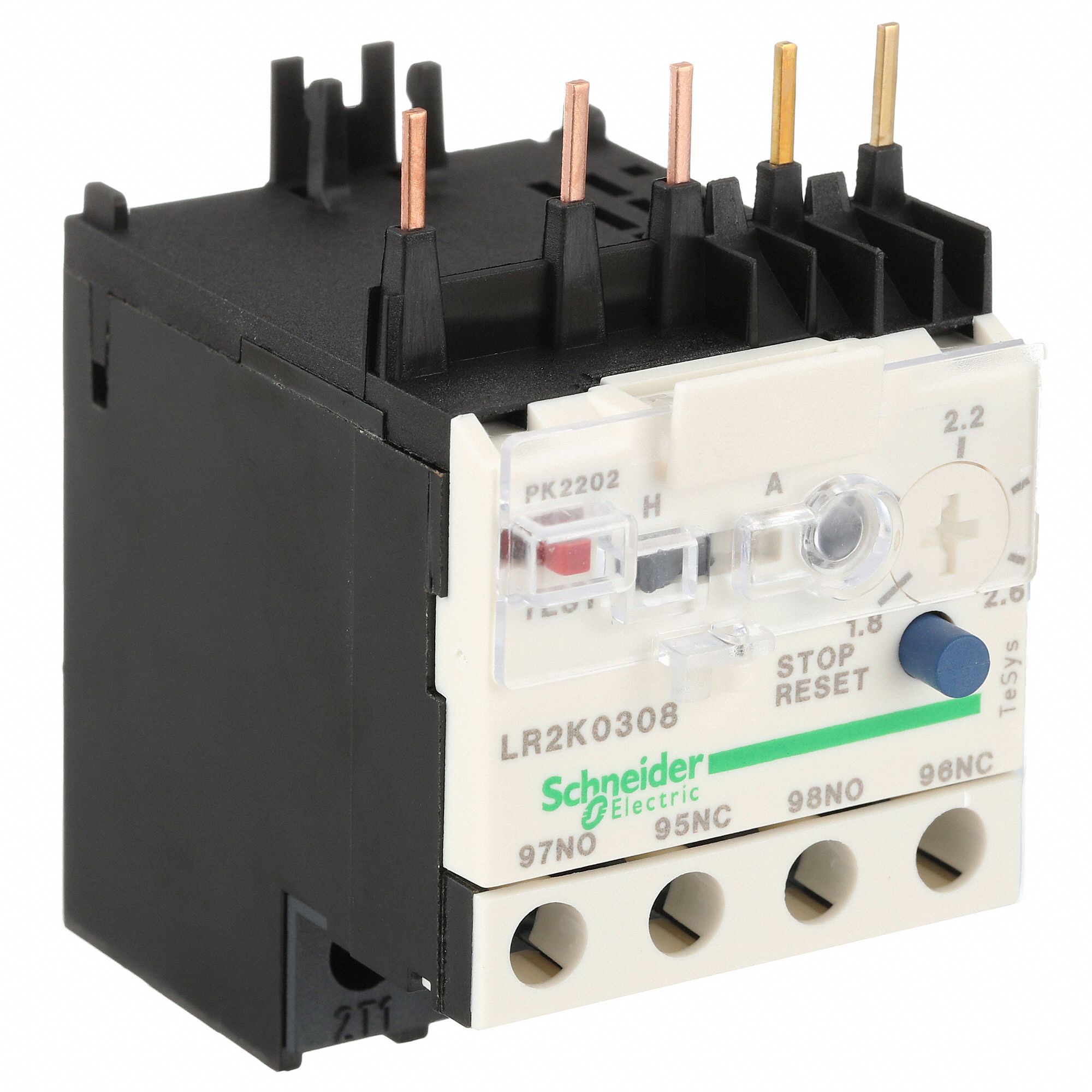

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2K0308) is a 3-pole IEC thermal overload relay with integrated bimetallic elements, requiring no external thermal units. It features 1NO/1NC auxiliary contacts, a maximum signaling circuit voltage rating of 690V AC, and phase loss sensitivity. The relay is compatible with TeSys Deca and TeSys K Model contactors and uses screw clamp terminals for connection.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys K Models |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC (Signaling Circuit) |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LR2K0308 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
