Schneider 3G-OTH-39603 — Spesifikasi Teknis

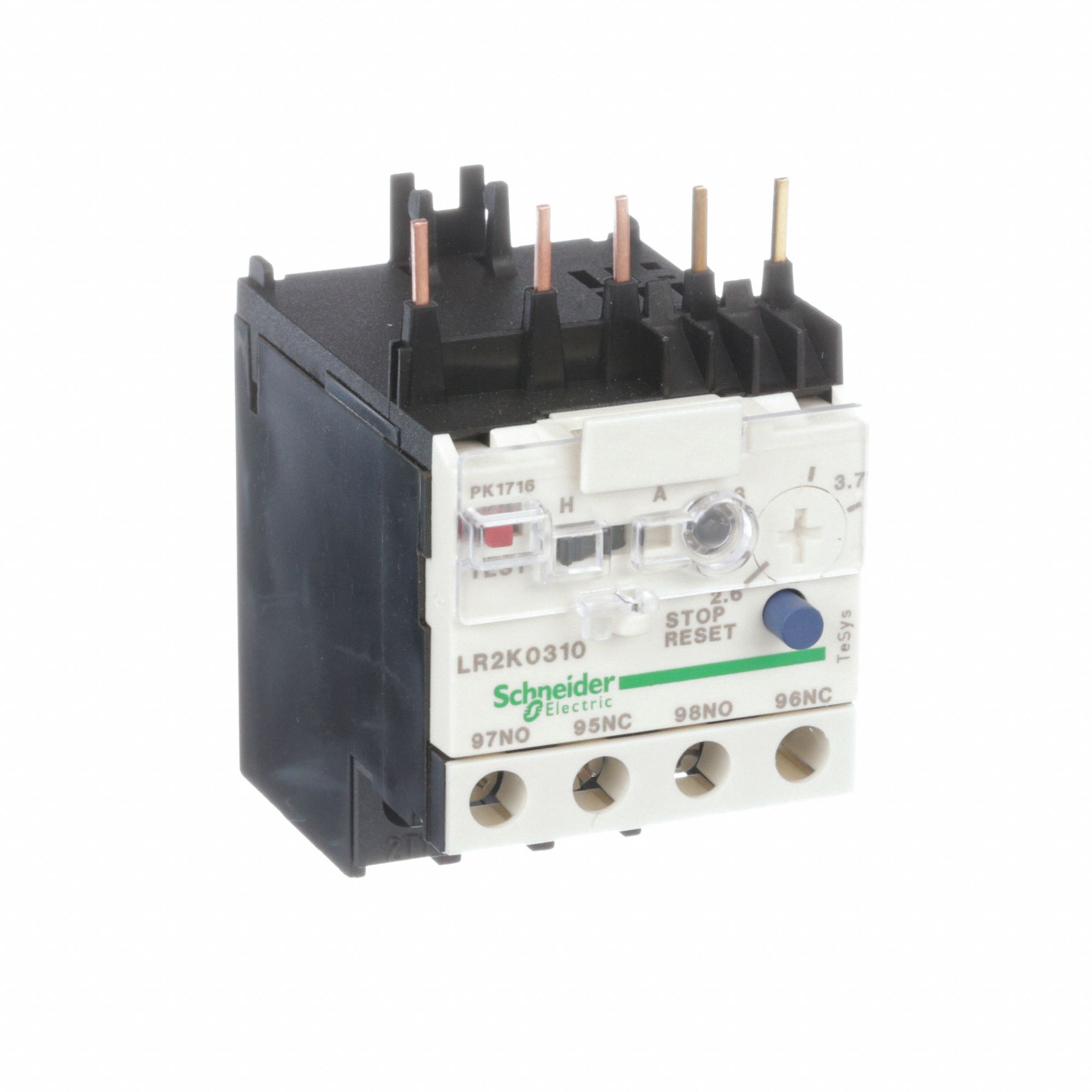

The SCHNEIDER Overload Relay: Thermal Protection (MPN LR2K0310) is a 3-pole IEC thermal overload relay designed for use with TeSys K contactors. It features integrated bimetallic elements, eliminating the need for separate thermal units, and includes a 1NO/1NC auxiliary contact configuration with a maximum signaling circuit voltage rating of 250V DC. The relay provides phase loss sensitivity and utilizes screw clamp terminals for secure wiring connections.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys K Models |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 250V DC (Signaling Circuit) |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LR2K0310 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys K |
