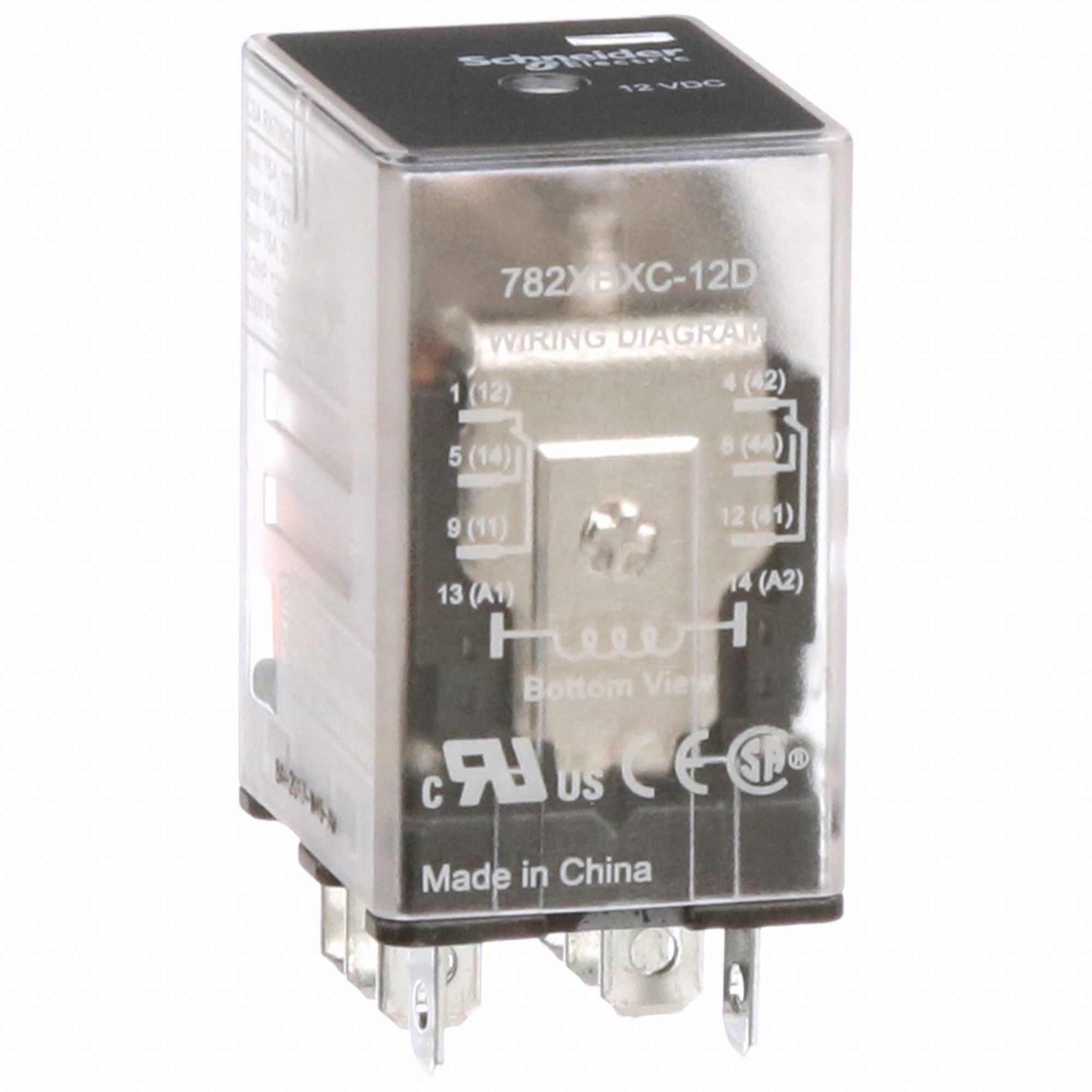

Schneider 3G-OTH-37103 — Spesifikasi Teknis
The SCHNEIDER 782 Series General Purpose Relay is a socket-mounted relay with a square base and DPDT contact configuration. It features a 12V DC coil, a 15 A current rating, and an operating current of 7.55 A at 250V (NC), with Faston Terminal electrical connections. This relay is designed for socket mounting and has 8 pins/terminals.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| DC | 12V |
| Type | DPDT |
| Brand | SCHNEIDER |
| Series | 782 Series |
| Base Type | Square |
| Current Rating | 15 A |
| Mounting Style | Socket |
| Pins/Terminals | 8 |
| Operating Current | 7.55 A at 250V (NC) |
| Electrical Connection | Faston Terminal |
| Manufacturer Part Number | 782XBXC-12D |
