Schneider 3G-OTH-42133 — Spesifikasi Teknis

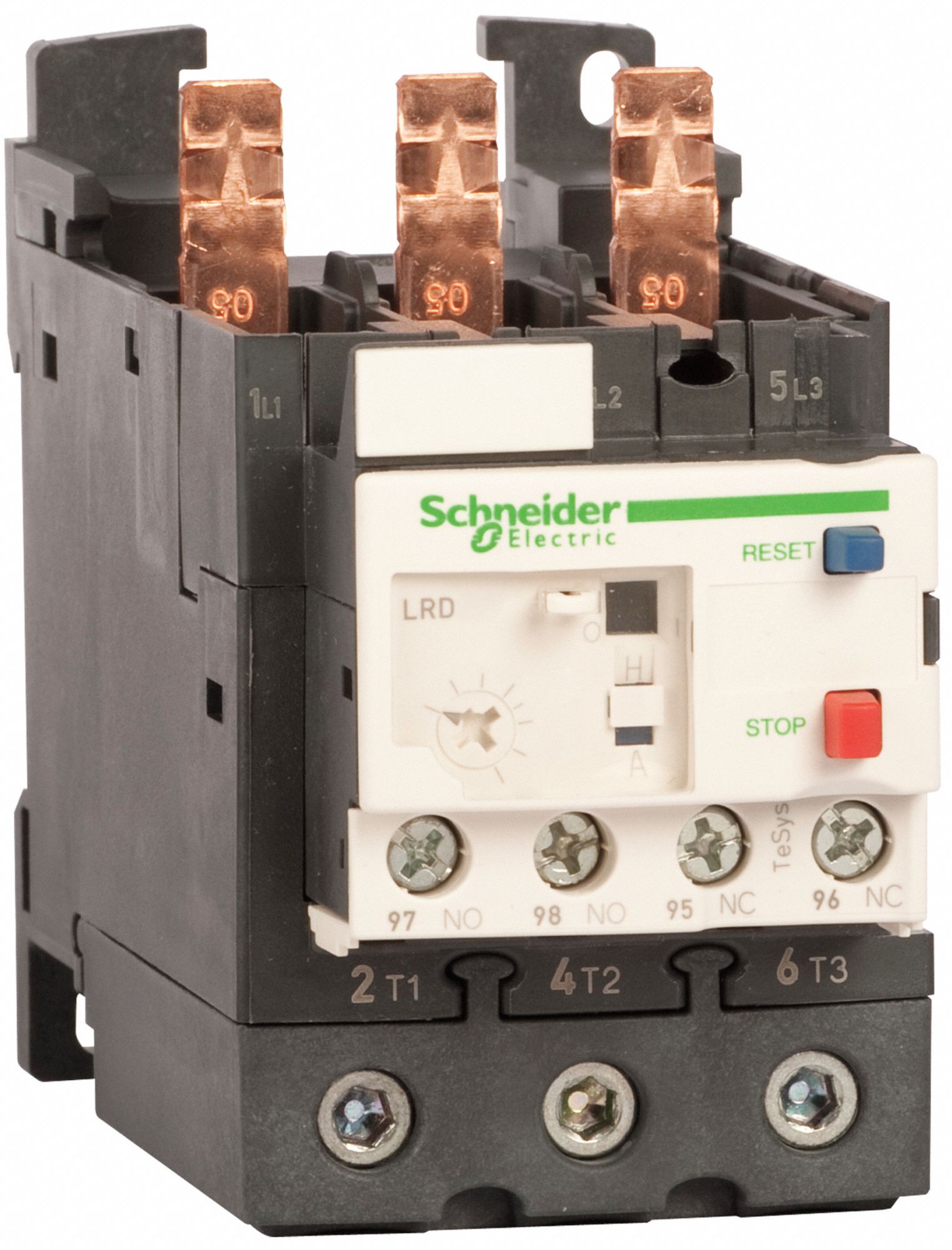

The SCHNEIDER Overload Relay: Thermal Protection (MPN LRD350L) is an IEC thermal overload relay with 3 poles and a 37 A – 50 A range. It features 1NO/1NC auxiliary contacts, a maximum voltage rating of 690V AC, and phase loss sensitivity. The relay includes integrated bimetallic elements, requires no thermal units, and uses screw clamp terminals. It is compatible with TeSys Deca contactors (40 to 65 Amp models).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity, 37 A – 50 A |
| Brand | SCHNEIDER |
| Poles | 3 |
| Compatible Contactors | TeSys Deca (40 to 65 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | LRD350L |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Contactor Series | TeSys Deca |
