Schneider 3G-OTH-45121 — Spesifikasi Teknis

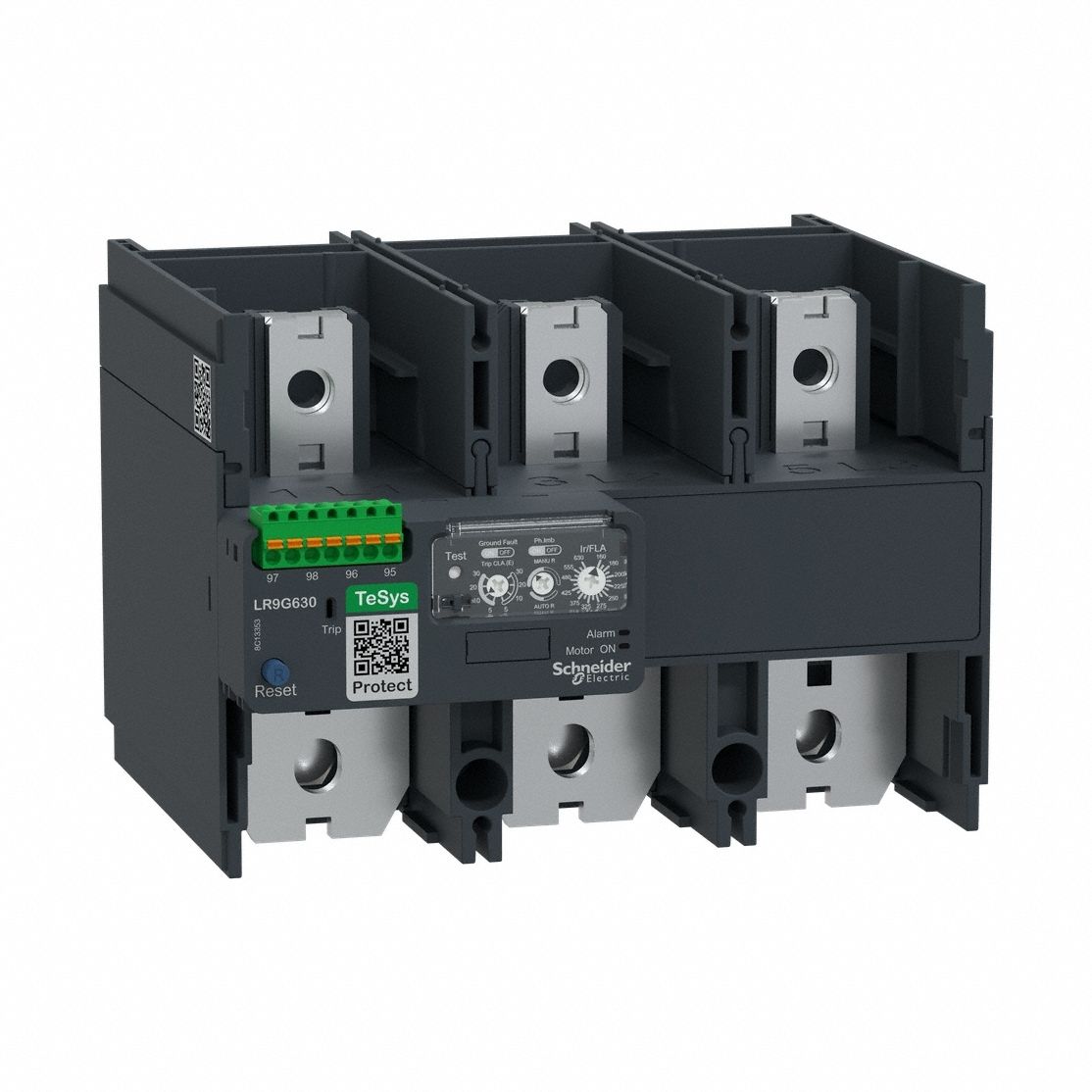

The SCHNEIDER LR9G630 is an IEC Electronic Overload Relay from the TeSys Giga series, offering electronic protection with Trip Class 5E/30E. It features 1NO/1NC auxiliary contacts, box lug terminals, a maximum voltage rating of 500V AC, and phase loss sensitivity. This relay is compatible with TeSys Giga contactors (160 to 630 Amp models) and does not require thermal units.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Phase Loss Sensitivity |
| Brand | SCHNEIDER |
| Poles | 3 |
| Trip Class | 5E/30E |
| Compatible Contactors | TeSys Giga (160 to 630 Amp Models) |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 500V AC |
| Phase Loss Sensitivity | Yes |
| Thermal Units Required | Not Applicable to Electronic Type Overload Relays |
| Manufacturer Part Number | LR9G630 |
| Terminal Connection Type | Box Lugs |
| Compatible Contactor Series | TeSys Giga |
