Schneider Electric 3G-OTH-37020 — Spesifikasi Teknis

Name: Schneider Electric 3G-OTH-37020 SCHNEIDER ELECTRIC Selector Switch: 30 mm Panel Mounting Size, 3 Positions, Short Lever, 1NC/1NO/1NC (MPN 9001KS46B 9001KA3 9001KA1). Key specifications — AC Contact Rating: 10 A @ 600 V; Action: Maintained/Maintained/Maintained; Cam: F; DC Contact Rating: 0.55 A @ 125 V; Hazardous Location Specification: Not Rated; Operator Head Material: Metal; Operator Head Type: Short-Handled Knob; Operator Illumination: Non-Illuminated.
Brand: Schneider Electric

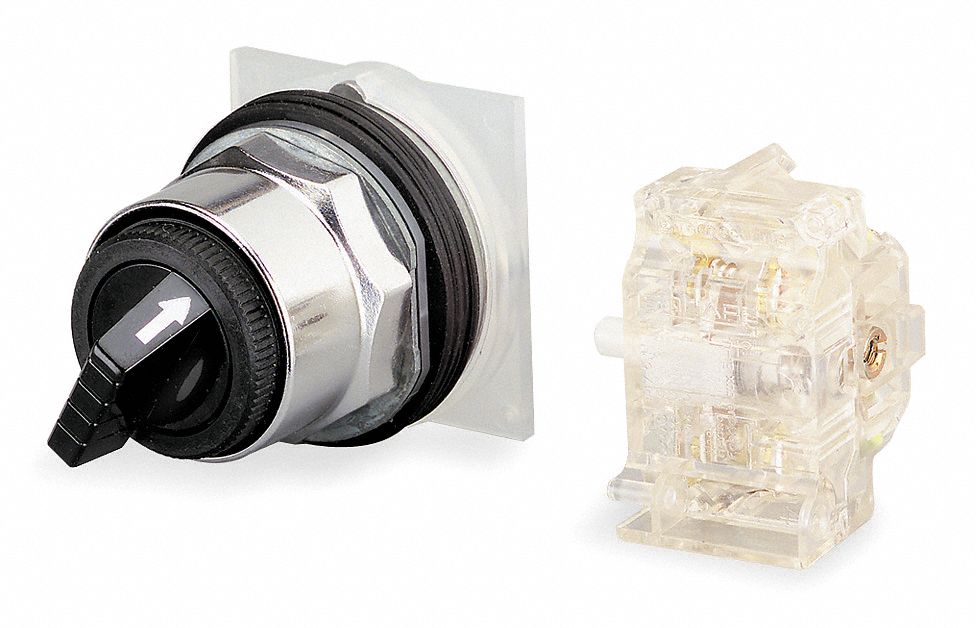

The SCHNEIDER ELECTRIC Selector Switch is a 30 mm panel-mounting, non-illuminated, metal-operator-head selector switch from the 9001K Series. It features a short-handled knob, three maintained positions (On/On/On) with Cam F, and is rated AC 10 A @ 600 V and DC 0.55 A @ 125 V. This switch is not rated for hazardous locations.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Cam	F
Type	Short Lever, 1NC/1NO/1NC
Brand	SCHNEIDER ELECTRIC
Action	Maintained/Maintained/Maintained
Series	9001K
Positions	3
AC Contact Rating	10 A @ 600 V
DC Contact Rating	0.55 A @ 125 V
Operator Head Type	Short-Handled Knob
Operator Illumination	Non-Illuminated
Operator Head Material	Metal
Manufacturer Part Number	9001KS46B 9001KA3 9001KA1
Switch Bezel Material Type	Metallic
Switch Function @ 1st Position	On
Switch Function @ 2nd Position	On
Switch Function @ 3rd Position	On
Switch Function @ 4th Position	No Fourth Position
Hazardous Location Specification	Not Rated
