Shimpo 3G-OTH-174991 — Spesifikasi Teknis

Name: Shimpo 3G-OTH-174991 SHIMPO Panel Meter: 0.4 RPM Min RPM, 999,999 RPM Max RPM, ± 0.008%± 1 digit RPM Accuracy, 6 Digits (MPN DT-501XD-CPT-FVC). Key specifications — Input Voltage: 10.8 to 25.2V DC; Output Current: 4 to 20 mA; Output Voltage: 0 to 10V DC; RPM Accuracy: ± 0.008 % ± 1 digit; Brand: SHIMPO.
Brand: Shimpo

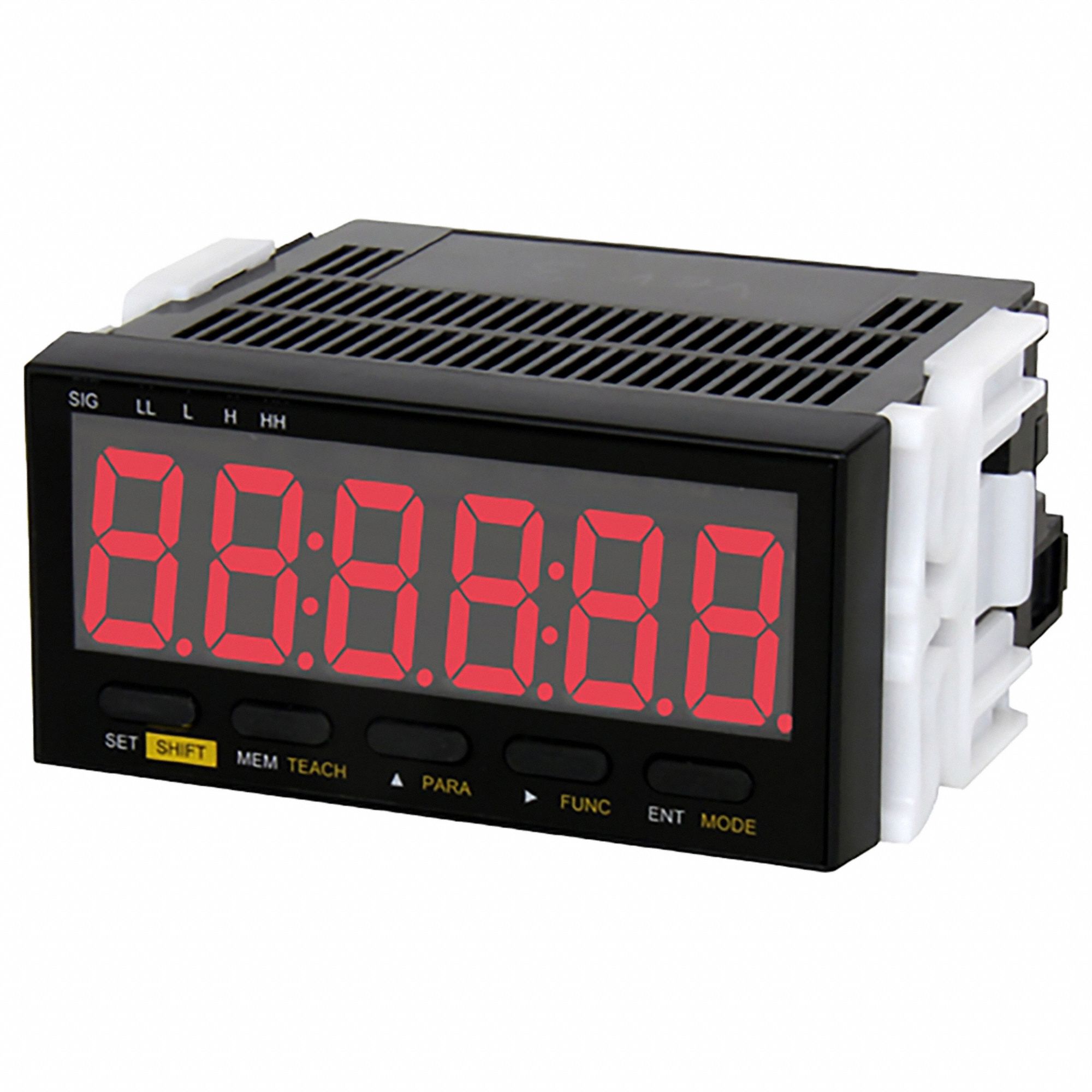

The SHIMPO DT-501XD-CPT-FVC is a panel mount tachometer with a 6-digit display, measuring from 0.4 RPM to 999,999 RPM with an accuracy of ± 0.008 % ± 1 digit. It operates on an input voltage of 10.8 to 25.2V DC and provides both a 4 to 20 mA output current and a 0 to 10V DC output voltage.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	999,999 RPM Max RPM, ± 0.008%± 1 digit RPM Accuracy
Brand	SHIMPO
Digits	6
RPM Accuracy	± 0.008 % ± 1 digit
Input Voltage	10.8 to 25.2V DC
Output Current	4 to 20 mA
Output Voltage	0 to 10V DC
Manufacturer Part Number	DT-501XD-CPT-FVC
