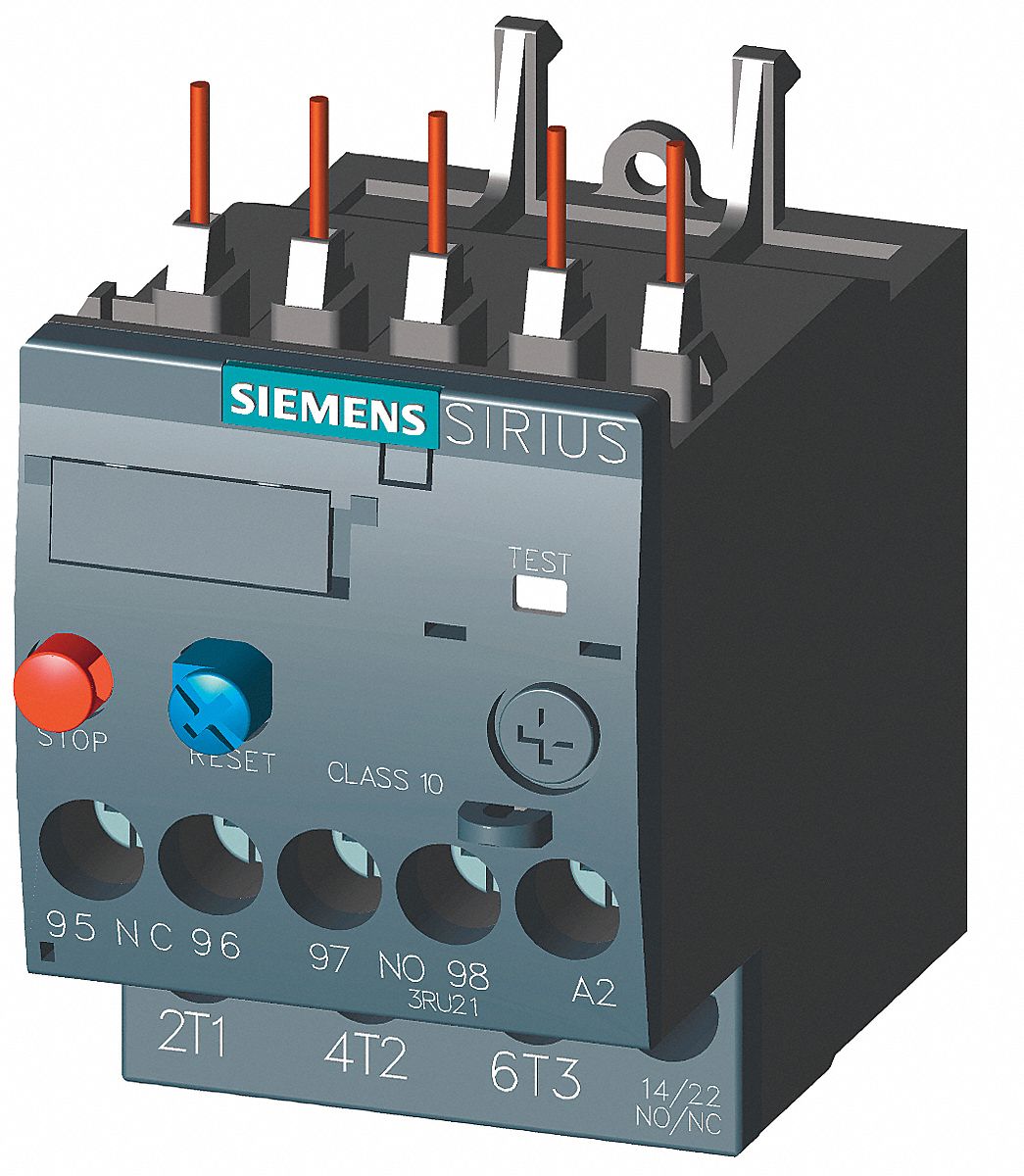

Siemens 3G-OTH-40019 — Spesifikasi Teknis
The SIEMENS Overload Relay is an IEC thermal overload relay from the SIRIUS series, designed for frame size S00 contactors. It features integrated bimetallic elements, eliminating the need for separate thermal units, and provides 1NO/1NC auxiliary contacts with screw terminals. The relay has a maximum voltage rating of 690V AC and does not include phase loss sensitivity.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Frame Size S00, 0.55 A – 0.8 A |
| Brand | SIEMENS |
| Poles | 3 |
| Frame Size | S00 |
| Compatible Contactors | Frame Size S00 |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | No |
| Thermal Units Required | None (Relay Includes Integrated Bimetallic Elements) |
| Manufacturer Part Number | 3RU21160HB0 |
| Terminal Connection Type | Screw Terminals |
| Compatible Contactor Series | SIRIUS |
