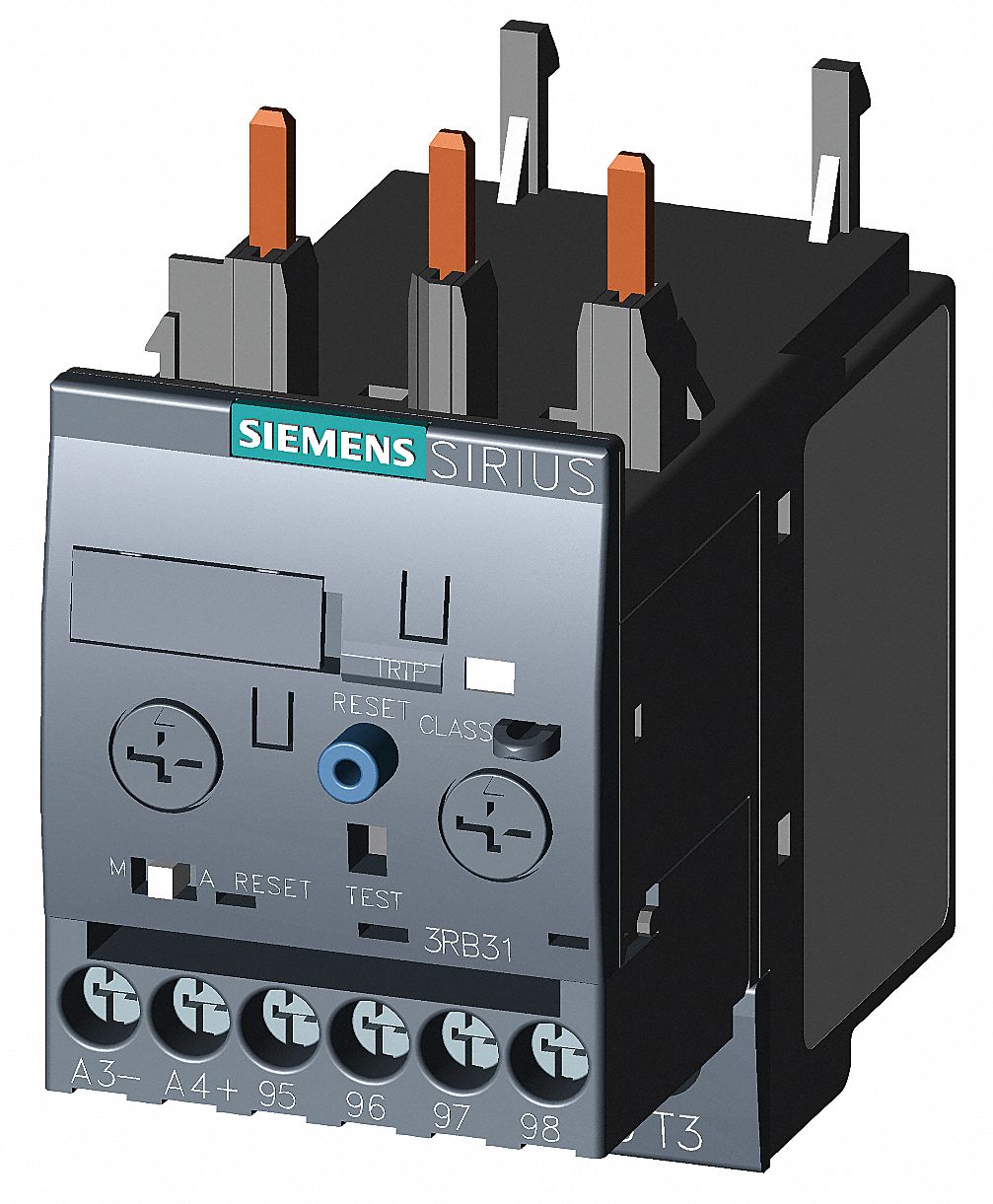

Siemens 3G-OTH-44315 — Spesifikasi Teknis
The SIEMENS Overload Relay: Electronic Protection is an IEC electronic overload relay with a frame size of S0, designed for use with SIRIUS contactors of the same frame size. It features a 1NO/1NC auxiliary contact form, screw terminals, and a maximum voltage rating of 690V AC. This three-pole relay has an adjustable current range of 0.1 A to 0.4 A and does not include phase loss sensitivity or require thermal units.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | 1NO/1NC, Frame Size S0, 0.1 A – 0.4 A |
| Brand | SIEMENS |
| Poles | 3 |
| Frame Size | S0 |
| Compatible Contactors | Frame Size S0 |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | No |
| Thermal Units Required | Not Applicable to Electronic Type Overload Relays |
| Manufacturer Part Number | 3RB31234RB0 |
| Terminal Connection Type | Screw Terminals |
| Compatible Contactor Series | SIRIUS |
