Siemens 3G-OTH-67586 — Spesifikasi Teknis

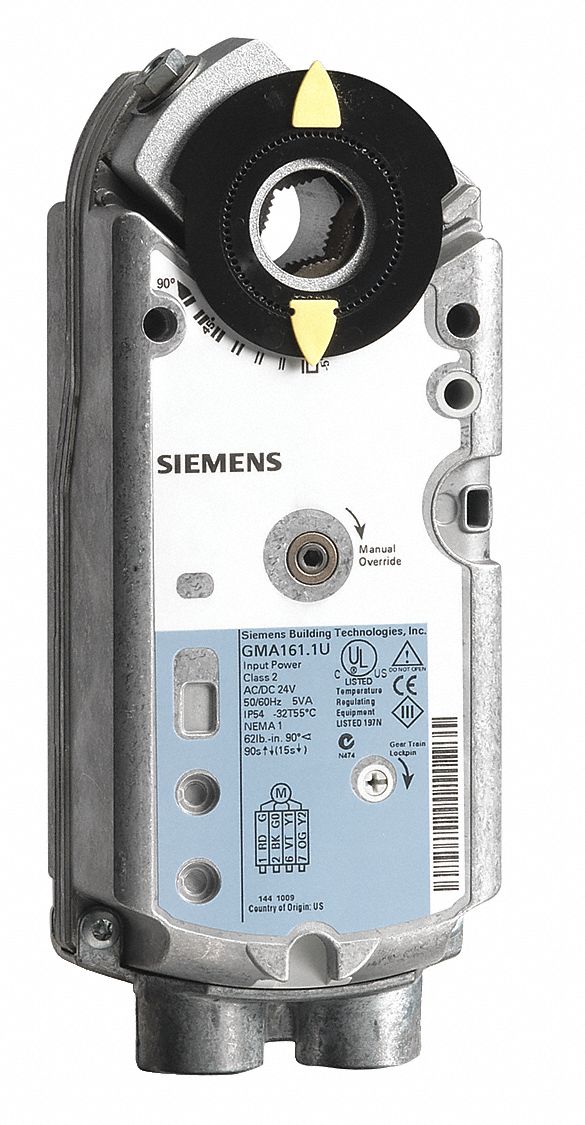

The SIEMENS GMA161.1U is a proportional, spring-return fail-safe damper actuator with a self-centering shaft coupling and 62 in-lb torque. It operates on 24V AC/DC input with a 3.5W power rating and provides a 0 to 10V DC output signal. This hardwired actuator supports CW/CCW shaft rotation, is NEMA 1 / IP54 rated, and is compatible with building automation systems.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Proportional, Spring Return, 62 in-lb, Hardwired, NEMA 1 / IP54 |
| AC/DC | 24V |
| Brand | SIEMENS |
| Shaft Type | Self-Centering Shaft Coupling |
| Power Rating | 3.5W |
| Input Voltage | 24V AC/DC |
| Output Signal | 0 to 10V DC |
| Plenum Rating | Not Plenum Rated |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | GMA161.1U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
