Siemens 3G-OTH-67372 — Spesifikasi Teknis

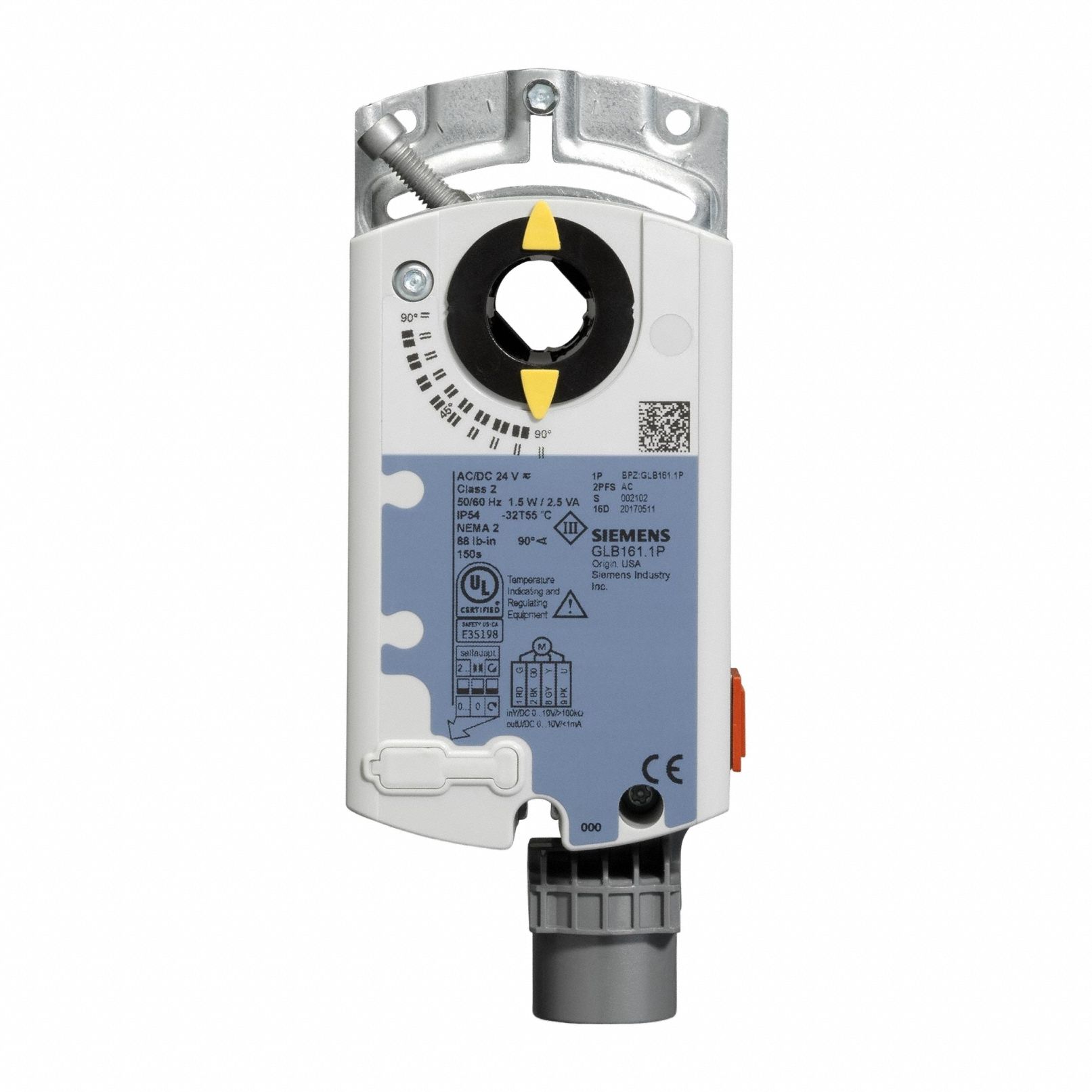

The Siemens GLB161.1P is a non-fail-safe, proportional damper actuator with a self-centering shaft, 95° stroke, and CW/CCW rotation. It operates on 24V AC with a 0 to 10V DC output signal and delivers 88 in-lb torque. This plenum-rated, hardwired actuator is compatible with building automation systems.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 24V |
| Type | Proportional, Non-Spring Return, 88 in-lb, Hardwired Plenum Rated Cables |
| Brand | SIEMENS |
| Shaft Type | Self-Centering |
| Input Voltage | 24V AC |
| Output Signal | 0 to 10V DC |
| Plenum Rating | Plenum Rated |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | GLB161.1P |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
