Siemens 3G-OTH-35170 — Spesifikasi Teknis

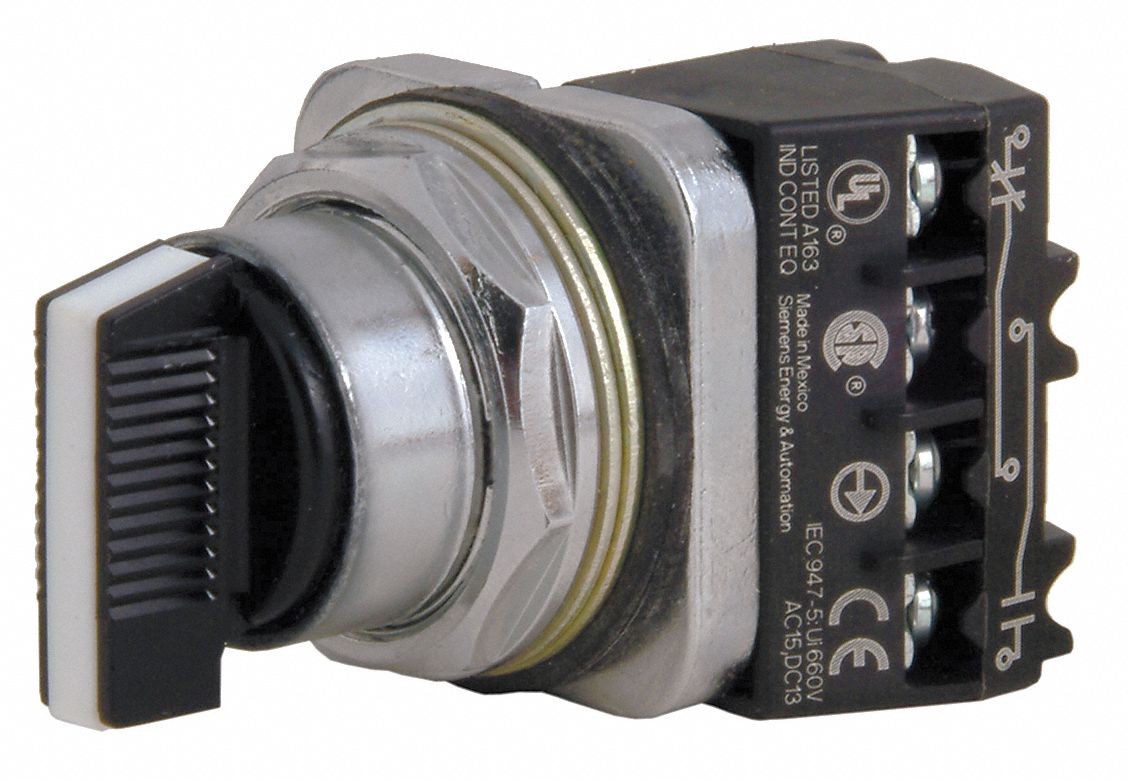

The SIEMENS Selector Switch (SKU 41H142, MPN 52SA2CDBA1) is a 30 mm panel-mounting selector switch from the 52SA Series. It features a 3-position, short-handled knob with a momentary/momentary/momentary action and a metallic bezel. The switch is rated for AC contacts at 10 A @ 600 V and DC contacts at 5 A @ 600 V, with a Cam C configuration and non-illuminated plastic operator head.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Cam | C |
| Type | Short Lever, 1NO/1NC, Metallic |
| Brand | SIEMENS |
| Action | Momentary/Maintained/Momentary |
| Series | 52SA |
| Positions | 3 |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 5 A @ 600 V |
| Operator Head Type | Short-Handled Knob |
| Operator Illumination | Non-Illuminated |
| Operator Head Material | Plastic |
| Manufacturer Part Number | 52SA2CDBA1 |
| Switch Bezel Material Type | Metallic |
| Switch Function @ 1st Position | Off |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Hazardous Location Specification | Not Rated |
