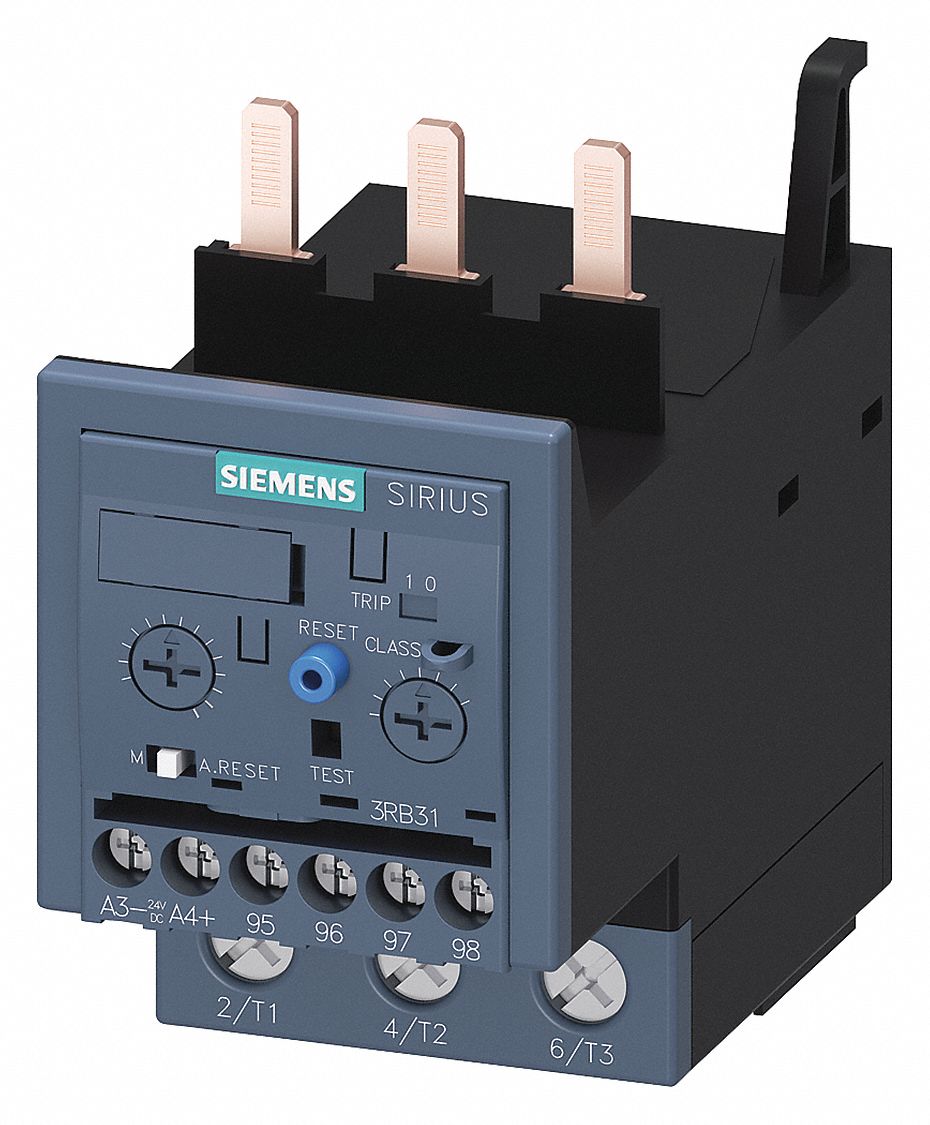

Siemens 3G-OTH-44975 — Spesifikasi Teknis
The SIEMENS Overload Relay is an IEC electronic overload relay with 3 poles and a 1NO/1NC auxiliary contact form, designed for Frame Size S2. It features a maximum voltage rating of 690V AC, screw terminals, and is compatible with SIRIUS contactors of the same frame size. This electronic type does not require thermal units and has no phase loss sensitivity.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | SIEMENS |
| Frame Size | S2 |
| Compatible Contactors | Frame Size S2 |
| Auxiliary Contact Form | 1NO/1NC |
| Maximum Voltage Rating | 690V AC |
| Phase Loss Sensitivity | No |
| Thermal Units Required | Not Applicable to Electronic Type Overload Relays |
| Manufacturer Part Number | 3RB31334WB0 |
| Terminal Connection Type | Screw Terminals |
| Compatible Contactor Series | SIRIUS |
