Simpson Electric 3G-OTH-28110 — Spesifikasi Teknis

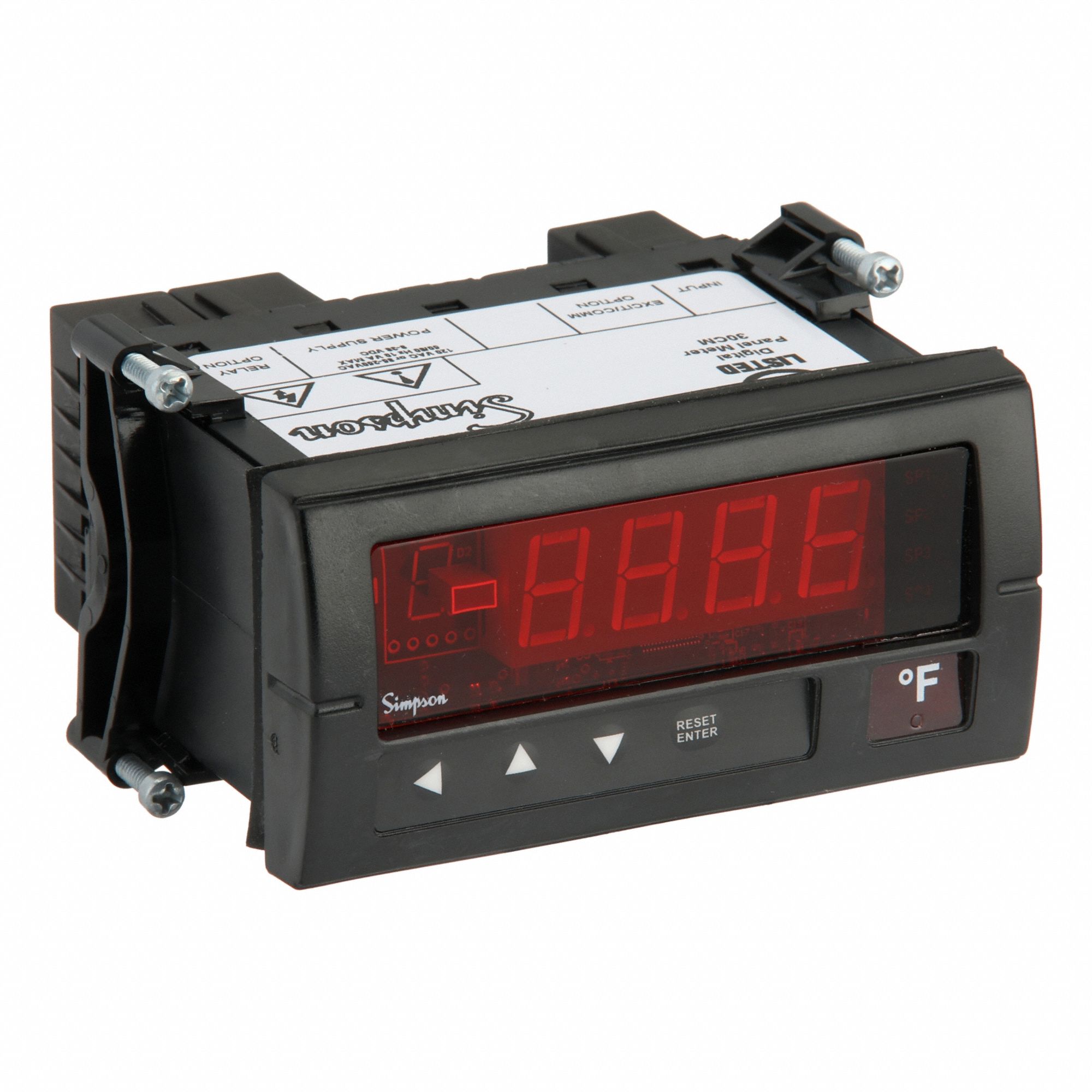

The SIMPSON ELECTRIC Hawk 3 Series H340-1-91-020 is a temperature digital panel meter with a 9,999 display span and a red LED display. It offers +/-0.2% of Reading +/-2 Count accuracy, an RS-485 interface, and (2) SPDT relay contacts rated at 5 A @ 120 V AC. The meter features a NEMA 4X enclosure rating and screw clamp terminal connections.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 120 V |
| Type | - Max, 0.56 in Digit Ht - Max |
| Brand | SIMPSON ELECTRIC |
| Series | Hawk 3 |
| Accuracy | +/-0.2% of Reading +/-2 Count |
| Includes | Instructions |
| Interface | RS-485 |
| Input Type | Temperature |
| Product Type | Digital Panel Meter |
| Display Features | High Contrast |
| Relay Contact Form | (2) SPDT |
| NEMA Enclosure Rating | 4X |
| Relay AC Contact Rating | 5 A @ 120V AC |
| Manufacturer Part Number | H340-1-91-020 |
| Terminal Connection Type | Screw Clamp |
| Digital Display Screen Type | LED |
| Digital Display Screen Color | Red |
