Skf 3G-OTH-100846 — Spesifikasi Teknis

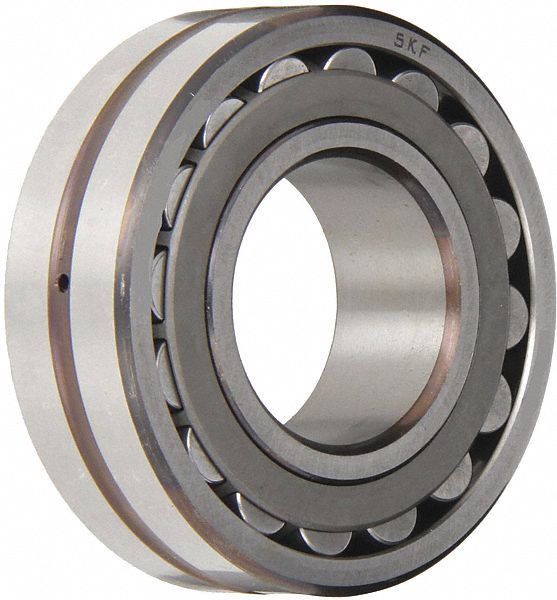

The SKF Spherical Roller Bearing 21313 is a high-clearance spherical roller bearing with a 65 mm bore, 140 mm outer diameter, and 33 mm overall width. It features a tapered 1:12 bore and is identified by manufacturer part number 21313 EK/C3 and bearing industry number 21313.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 140 mm |
| Bore | 65 mm |
| Brand | SKF |
| Tapered 1 | 12 |
| Overall Wd | 33 mm |
| Bearing Industry Number | 21313 |
| Manufacturer Part Number | 21313 EK/C3 |
