Solahd 3G-OTH-23051 — Spesifikasi Teknis

Name: Solahd 3G-OTH-23051 SOLAHD Surge Protection Device: Single Phase, 240V AC, 2 Poles, 2 + Ground Wires, L-G/L-L/L-N/N-G (MPN STFE05024L). Key specifications — Voltage: 240V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: N-G; Max. Continuing Operating Voltage: 275 V AC; Voltage Protection Rating: 800V (L-L); Short Circuit Current Rating: 5kAIC; Filtering: Yes; Enclosure Material: Metal.
Brand: Solahd

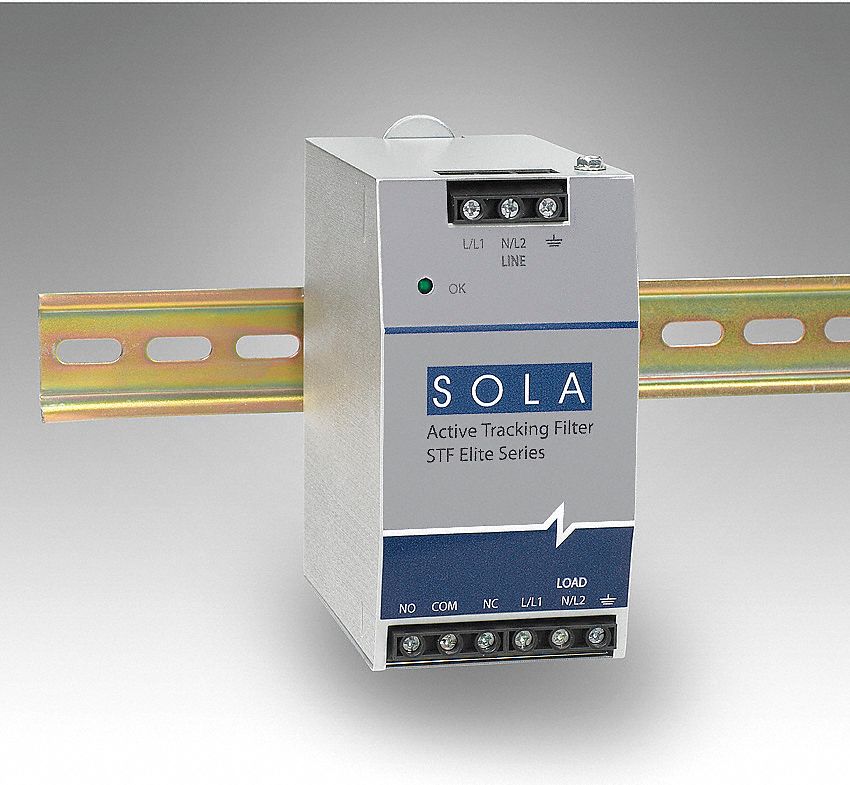

The SOLAHD STFE05024L is a single-phase, DIN Rail internal-mount surge protection device (SPD) with a metal enclosure. It operates at 240V AC with a maximum continuous operating voltage of 275V AC, providing N-G mode protection and an 800V (L-L) voltage protection rating. The unit features a 5kAIC short-circuit current rating, 2 wires plus ground, and includes filtering.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	240V
Type	2 + Ground Wires, L-G/L-L/L-N/N-G
Brand	SOLAHD
Poles	2
Voltage	240V AC
Filtering	Yes
Mounting Style	DIN-Rail
Number Of Wires	2 Wires + Ground
Enclosure Material	Metal
Modes Of Protection	N-G
Manufacturer Part Number	STFE05024L
Voltage Protection Rating	800V (L-L)
Short Circuit Current Rating	5kAIC
Max. Continuing Operating Voltage	275 V AC
