Solahd 3G-OTH-23205 — Spesifikasi Teknis

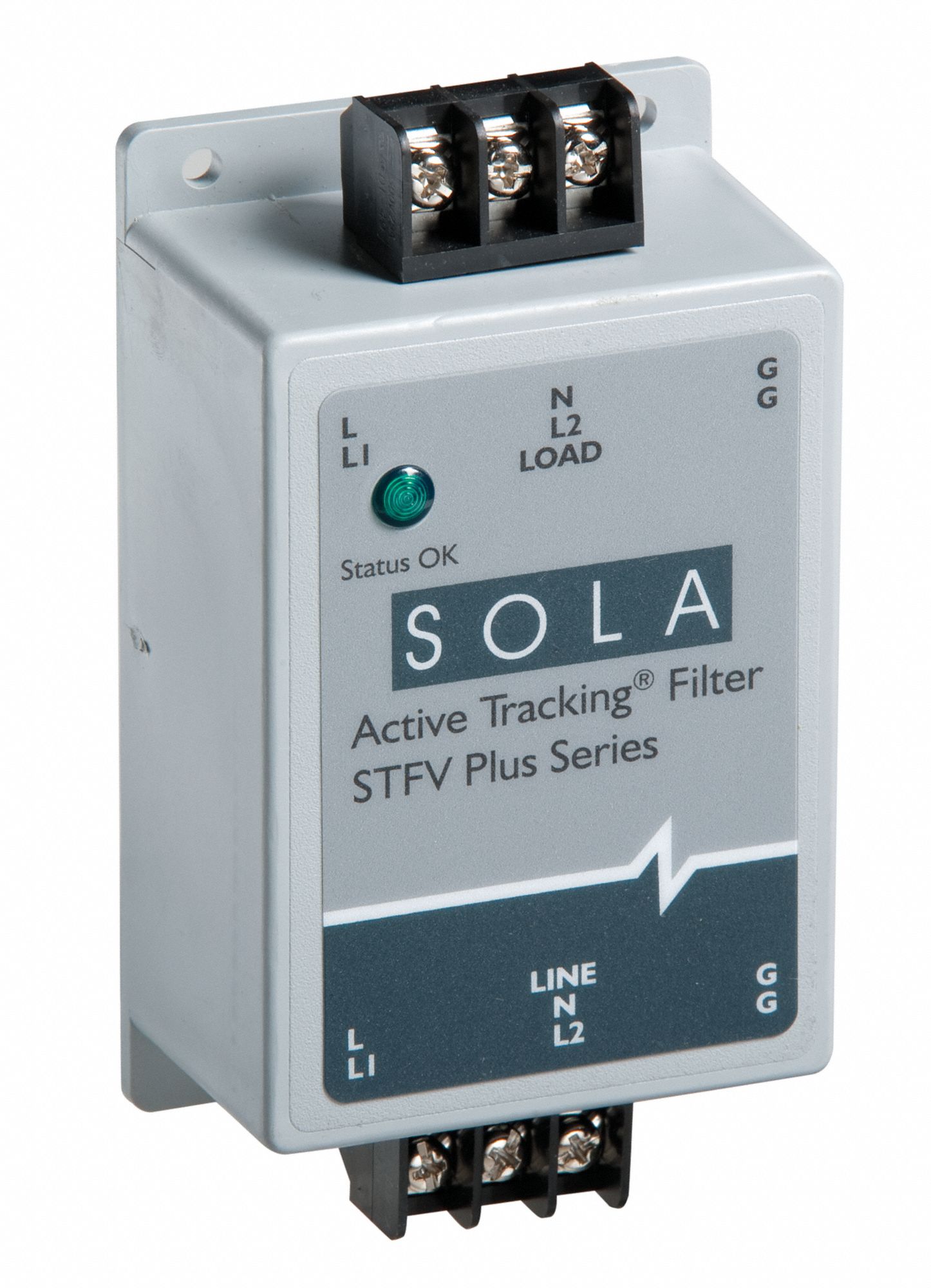

Name: Solahd 3G-OTH-23205 SOLAHD Surge Protection Device: Single Phase, 240V AC, 2 Poles, 2 + Ground Wires, L-G/L-L/L-N/N-G (MPN STFV05024L). Key specifications — Voltage: 240V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: L-N; Max. Continuing Operating Voltage: 275 V AC; Short Circuit Current Rating: Not Rated; Filtering: Yes; Enclosure Material: Epoxy Encapsulated Plastic; Mounting Style: Surface.
Brand: Solahd

The SOLAHD Surge Protection Device is a single-phase, internal surface-mount SPD with a 240V AC rating and a maximum continuous operating voltage of 275 V AC. It provides L-N mode protection, includes filtering, and is housed in an epoxy encapsulated plastic enclosure. The unit connects with 2 wires plus ground and has a short circuit current rating of Not Rated.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	240V
Type	2 + Ground Wires, L-G/L-L/L-N/N-G
Brand	SOLAHD
Poles	2
Voltage	240V AC
Filtering	Yes
Mounting Style	Surface
Number Of Wires	2 Wires + Ground
Enclosure Material	Epoxy Encapsulated Plastic
Modes Of Protection	L-N
Manufacturer Part Number	STFV05024L
Short Circuit Current Rating	Not Rated
Max. Continuing Operating Voltage	275 V AC
