Solahd 3G-OTH-22642 — Spesifikasi Teknis

Name: Solahd 3G-OTH-22642 SOLAHD Surge Protection Device: Single Phase, 120V AC, 1 Poles, 2 + Ground Wires, L-G/L-N/N-G, 5kA (MPN STV25K10S). Key specifications — Voltage: 120V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: L-G; Max. Continuing Operating Voltage: 150 V AC; Voltage Protection Rating: 500V (L-G, L-N, N-G); Short Circuit Current Rating: 5kA; Filtering: Yes; Enclosure Material: Metal.
Brand: Solahd

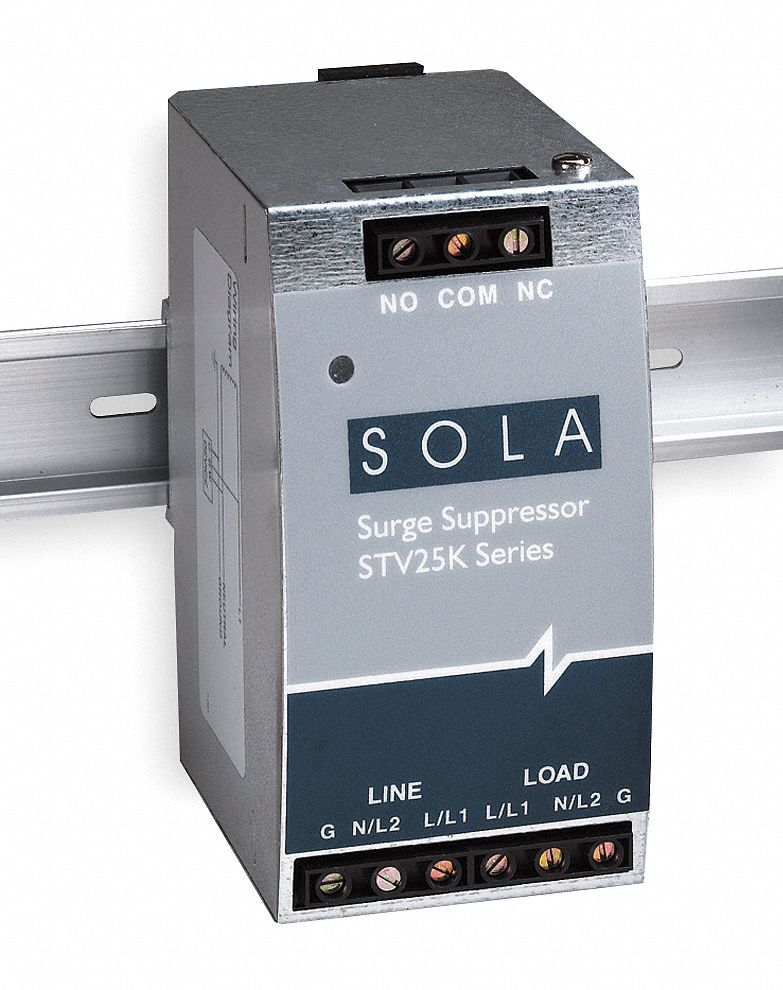

The SOLAHD STV25K10S is a single-phase, DIN Rail internal-mount surge protection device (SPD) with a metal enclosure. It operates at 120V AC with a maximum continuous operating voltage of 150V AC, features L-G protection modes, and has a voltage protection rating of 500V (L-G, L-N, N-G). The unit supports 2 wires plus ground, includes filtering, and is rated for a short circuit current of 5kA.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120V
Type	2 + Ground Wires, L-G/L-N/N-G, 5kA
Brand	SOLAHD
Poles	1
Voltage	120V AC
Filtering	Yes
Mounting Style	DIN-Rail
Number Of Wires	2 Wires + Ground
Enclosure Material	Metal
Modes Of Protection	L-G
Manufacturer Part Number	STV25K10S
Voltage Protection Rating	500V (L-G, L-N, N-G)
Short Circuit Current Rating	5kA
Max. Continuing Operating Voltage	150 V AC
