Solahd 3G-OTH-22727 — Spesifikasi Teknis

Name: Solahd 3G-OTH-22727 SOLAHD Surge Protection Device: Single Phase, 240V AC, 3 Poles, 2 + Ground Wires, L-G/L-L, 275 V AC (MPN STV25K24S). Key specifications — Voltage: 240V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: L-L; Max. Continuing Operating Voltage: 275 V AC; Voltage Protection Rating: 900V (L-L, L-G); Short Circuit Current Rating: 5kA; Filtering: Yes; Enclosure Material: Metal.
Brand: Solahd

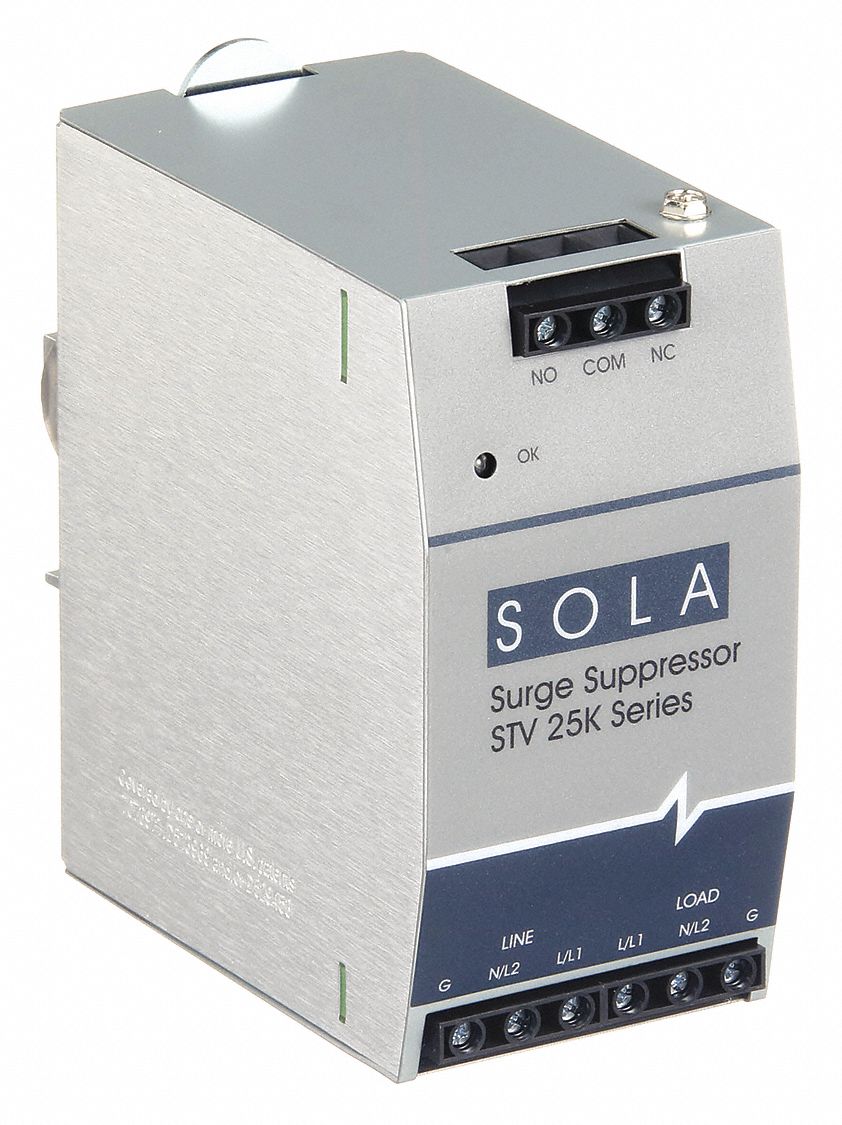

The SOLAHD STV25K24S is a single-phase DIN Rail internal-mount surge protection device (SPD) with a 240V AC rating, 2 wires plus ground, and metal enclosure. It offers L-L mode protection, a voltage protection rating of 900V (L-L, L-G), a short circuit current rating of 5kA, and a max. continuing operating voltage of 275 V AC, with filtering included.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	240V
Type	2 + Ground Wires, L-G/L-L
Brand	SOLAHD
Poles	3
Voltage	240V AC
Filtering	Yes
Mounting Style	DIN-Rail
Number Of Wires	2 Wires + Ground
Enclosure Material	Metal
Modes Of Protection	L-L
Manufacturer Part Number	STV25K24S
Voltage Protection Rating	900V (L-L, L-G)
Short Circuit Current Rating	5kA
Max. Continuing Operating Voltage	275 V AC
