Soler & Palau 3G-OTH-77942 — Technical Specifications

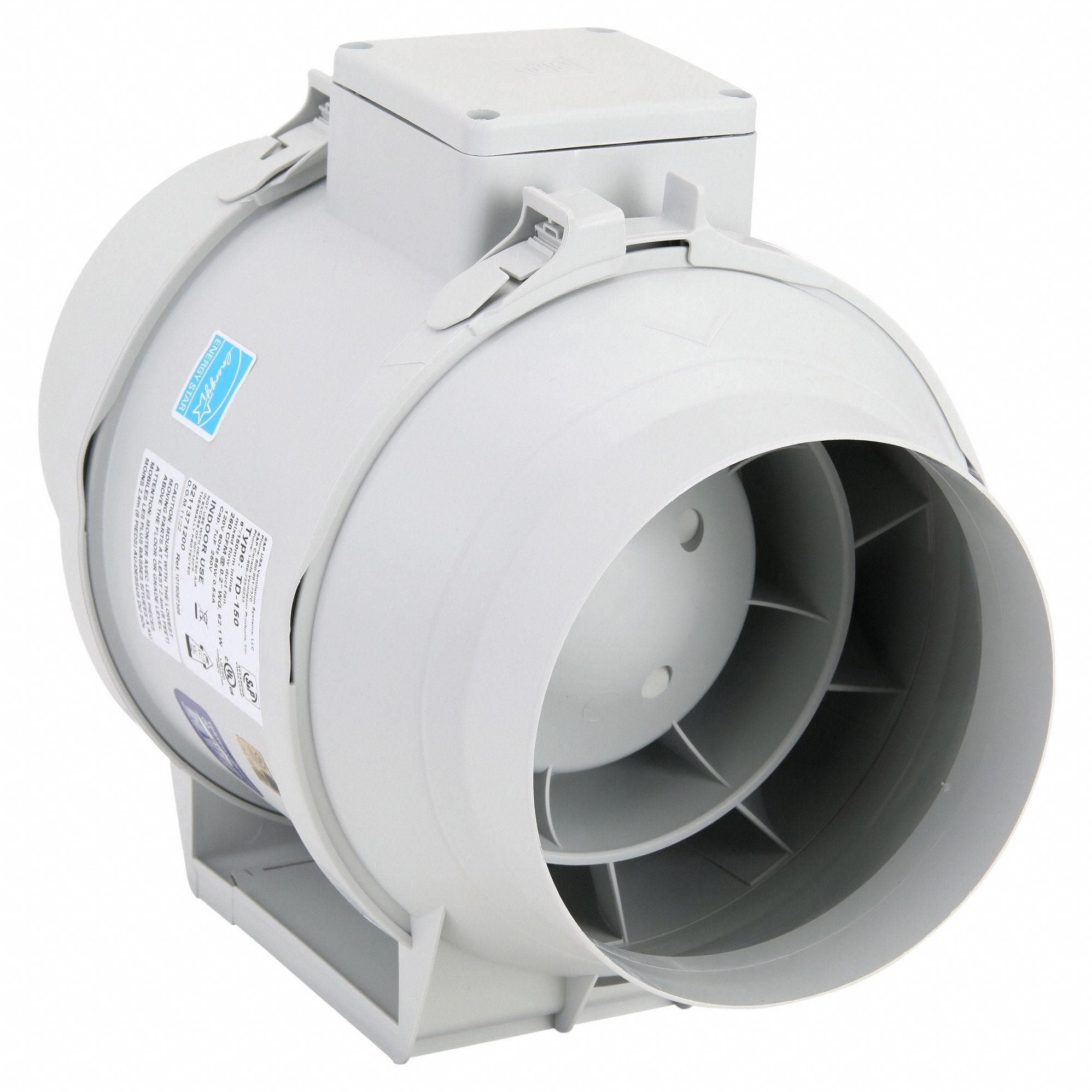

Name: Soler & Palau 3G-OTH-77942 In-Line Duct Fan: 293 cfm Max., 6 in Duct, 65 W, 120V AC, 1 Ph, IP44, Thermoplastic (MPN KIT-TD150-DV). Key specifications — Includes: (1) Y Fitting; Brand: SOLER & PALAU; Speed Controllable: Yes; High-Efficiency Motor: No; Housing Material: Thermoplastic; Nameplate Voltage: 120V AC; Number of Speeds: 1; Airflow @ 0.000 in SP - Range: 250 to 499 cfm.
Brand: Soler & Palau

The SOLER & PALAU In-Line Duct Fan (MPN KIT-TD150-DV) is a general-purpose inline duct fan kit with a maximum airflow of 293 cfm. It features a thermoplastic housing, a single-speed 120V AC motor that is speed controllable, and includes one Y fitting. This standard-efficiency motor unit is rated for airflow from 250 to 499 cfm at 0.000 in SP.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Ph	1
Duct	6 in
Type	65 W, IP44, Thermoplastic
Brand	SOLER & PALAU
Includes	(1) Y Fitting
Housing Material	Thermoplastic
Number Of Speeds	1
Nameplate Voltage	120V AC
Speed Controllable	Yes
High-Efficiency Motor	No
Manufacturer Part Number	KIT-TD150-DV
High-Efficiency Motor Broad	Standard-Efficiency Motor
Airflow @ 0.000 In SP - Range	250 to 499 cfm
