Souriau 3G-OTH-10076 — Spesifikasi Teknis

Name: Souriau 3G-OTH-10076 SOURIAU Electrical Connector: Trim Trio UTL 10, Jam Nut Receptacle, 6 Contacts, 16 A, IP68/IP69K (MPN UTL7102G1W3S). Key specifications — Wire Size: 30 AWG to 24 AWG (Coaxial); Includes Contacts: Contacts Not Included; Brand: SOURIAU; Coupling Type: Push-Pull; IP Rating: IP69K; Series: Trim Trio UTL; Contact Gender: Female; Voltage Rating: 500V (IEC).
Brand: Souriau

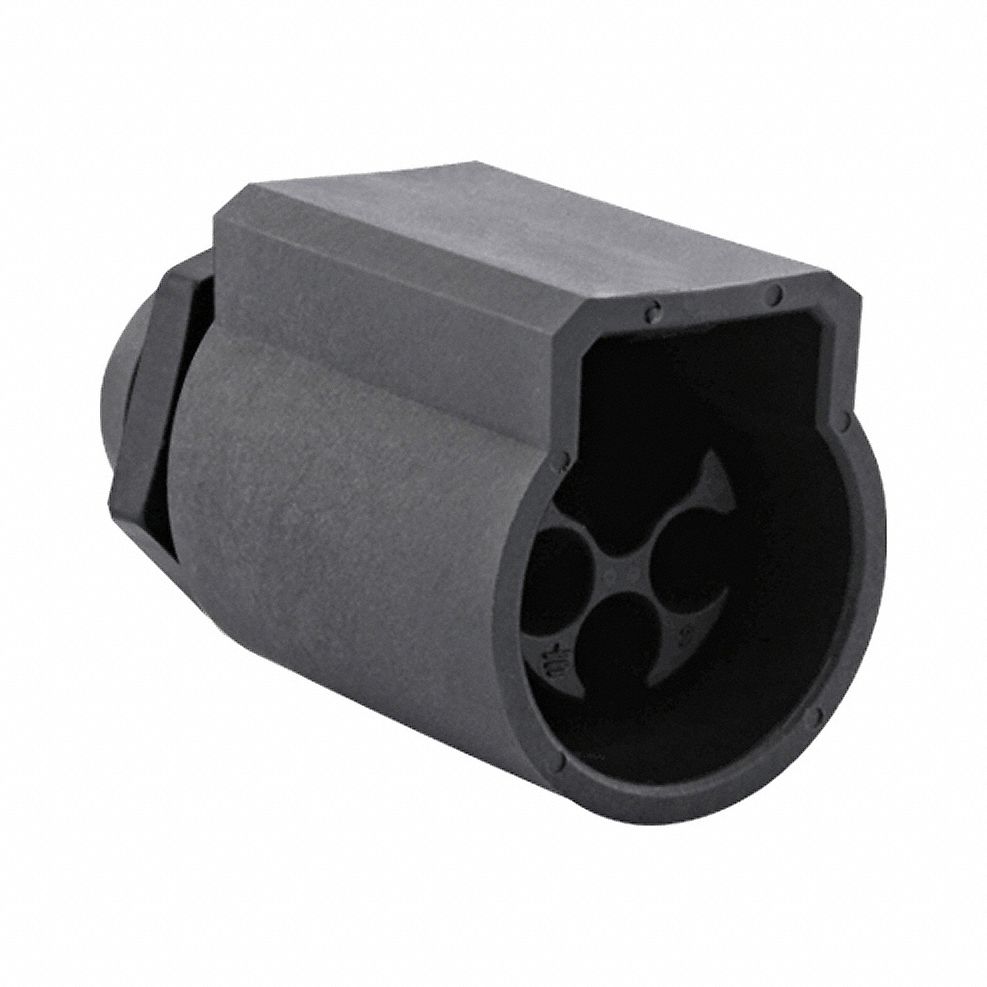

The SOURIAU Trim Trio UTL 10 is a harsh-environment circular connector from the Trim Trio UTL series, configured as a jam nut receptacle with a push-pull coupling and female contacts. It is rated IP69K, carries a 500V (IEC) voltage rating, and accepts wire sizes from 30 AWG to 24 AWG (coaxial). Contacts are not included with this connector.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	Jam Nut Receptacle, 16 A, IP68/IP69K
Brand	SOURIAU
Series	Trim Trio UTL
Contacts	6
IP Rating	IP69K
Wire Size	30 AWG to 24 AWG (Coaxial)
Coupling Type	Push-Pull
Contact Gender	Female
Voltage Rating	500V (IEC)
Connector Design	Jam Nut Receptacle
Connector Number	102G1W3
Includes Contacts	Contacts Not Included
Manufacturer Part Number	UTL7102G1W3S
