Souriau 3G-OTH-09015 — Spesifikasi Teknis

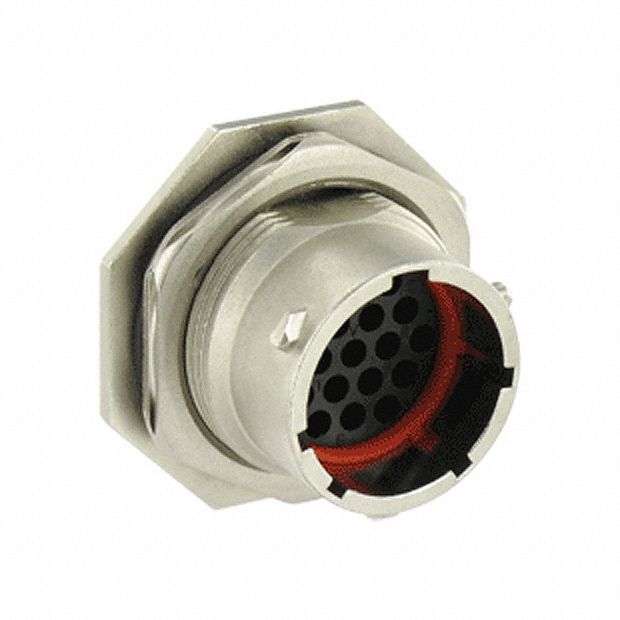

The SOURIAU Trim Trio UTO 14 is a harsh-environment circular connector from the Trim Trio UTO series, configured as a jam nut receptacle with 19 male contacts. It features an IP69K rating, a 1/3 bayonet coupling, and accepts wire sizes from 26 AWG to 18 AWG, with a voltage rating of 250V (UL) and a current rating of 5 A. Contacts are not included.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Jam Nut Receptacle, 5 A, IP68/IP69K |
| Brand | SOURIAU |
| Series | Trim Trio UTO |
| Contacts | 19 |
| IP Rating | IP69K |
| Wire Size | 26 AWG to 18 AWG |
| Coupling Type | 1/3 Bayonet |
| Contact Gender | Male |
| Voltage Rating | 250V (UL) |
| Connector Design | Jam Nut Receptacle |
| Connector Number | 1419 |
| Includes Contacts | Contacts Not Included |
| Manufacturer Part Number | UT0W71419PH6 |
