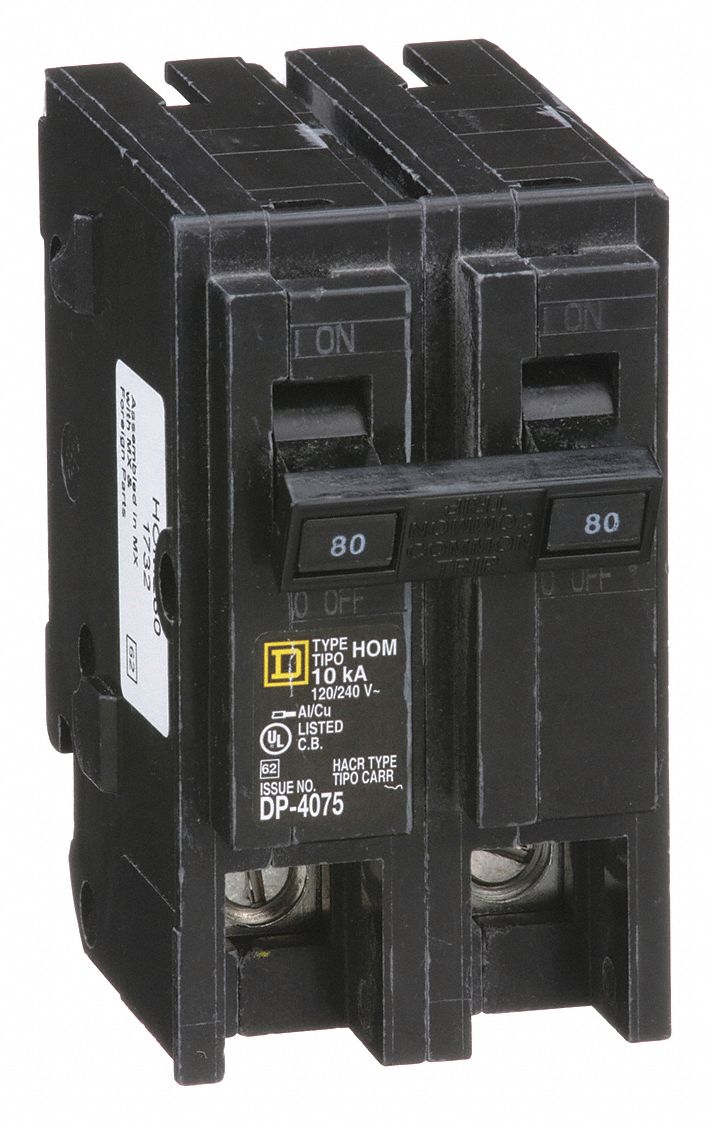

Square D 3G-OTH-21167 — Spesifikasi Teknis

Name: Square D 3G-OTH-21167 SQUARE D Miniature Circuit Breaker: 80 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 2 Poles (MPN HOM280). Key specifications — Phase: Single; Amps: 80 A; AC Voltage Rating: 120/240V AC; Max. AIR Rating: 10kA at 120/240V AC; For Use With: Homeline Load Center; Brand: SQUARE D.
Brand: Square D

The SQUARE D HOM Series Miniature Circuit Breaker (MPN HOM280) is a plug-in, 2-pole, single-phase breaker rated at 80 A and 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with Homeline Load Centers, this unit provides overcurrent protection in residential and commercial electrical distribution systems.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120/240V
Amps	80 A
Type	Single Phase, 10kA at 120/240V AC
Brand	SQUARE D
Phase	Single
Poles	2
For Use With	Homeline Load Center
Max. AIR Rating	10kA at 120/240V AC
AC Voltage Rating	120/240V AC
Manufacturer Part Number	HOM280
