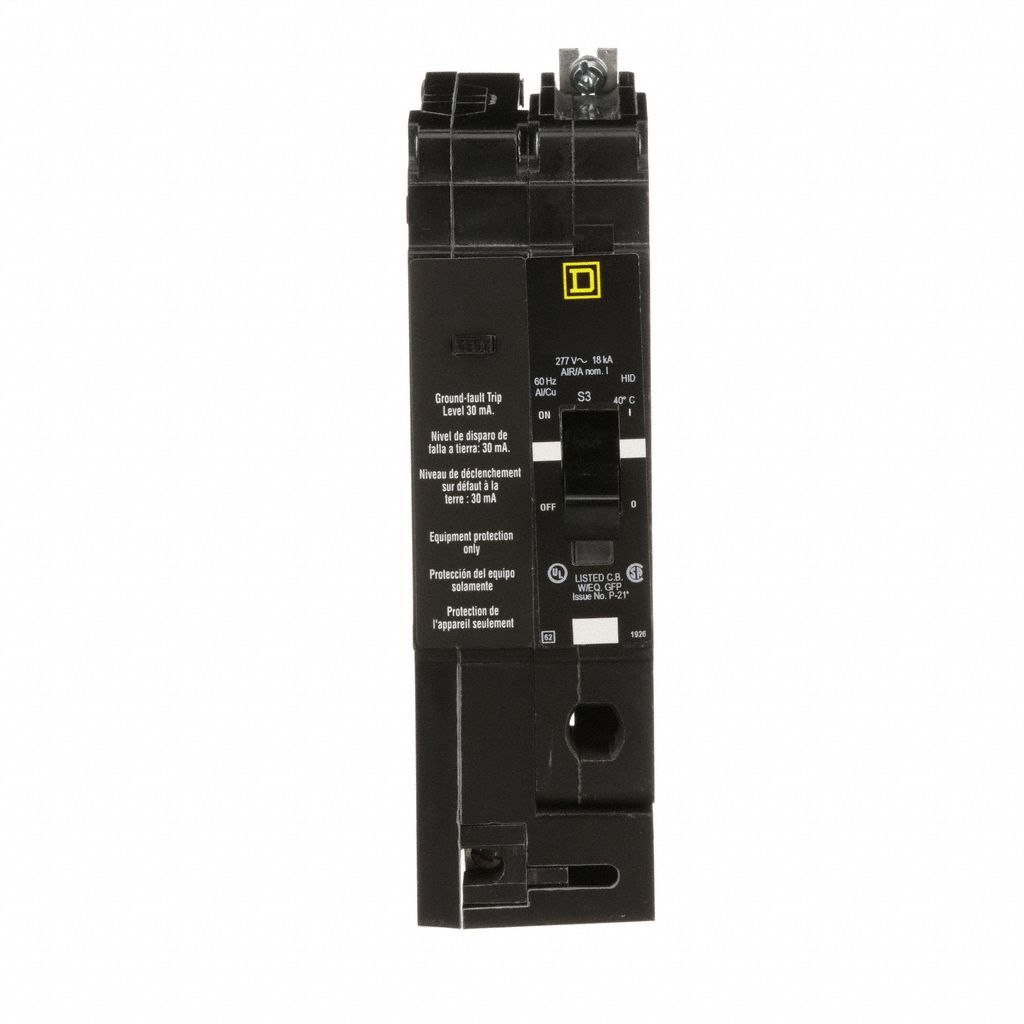

Square D 3G-OTH-22661 — Spesifikasi Teknis

Name: Square D 3G-OTH-22661 SQUARE D Miniature Circuit Breaker: 15 A, 277V AC, Single Phase, 18kA at 120/240V AC, 1 Poles (MPN EDB14015EPD). Key specifications — Phase: Single; Amps: 15 A; AC Voltage Rating: 277V AC; Max. AIR Rating: 18kA at 120/240V AC; For Use With: Square D NF Panelboards; Brand: SQUARE D.
Brand: Square D

The SQUARE D Miniature Circuit Breaker, part of the EDB & EGB Series, is a bolt-on circuit breaker rated for 15 A, single phase, and 277V AC. It has a maximum AIR rating of 18kA at 120/240V AC and is designed for use with Square D NF Panelboards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	277V
Amps	15 A
Type	Single Phase, 18kA at 120/240V AC
Brand	SQUARE D
Phase	Single
Poles	1
For Use With	Square D NF Panelboards
Max. AIR Rating	18kA at 120/240V AC
AC Voltage Rating	277V AC
Manufacturer Part Number	EDB14015EPD
