Square D 3G-OTH-22154 — Spesifikasi Teknis

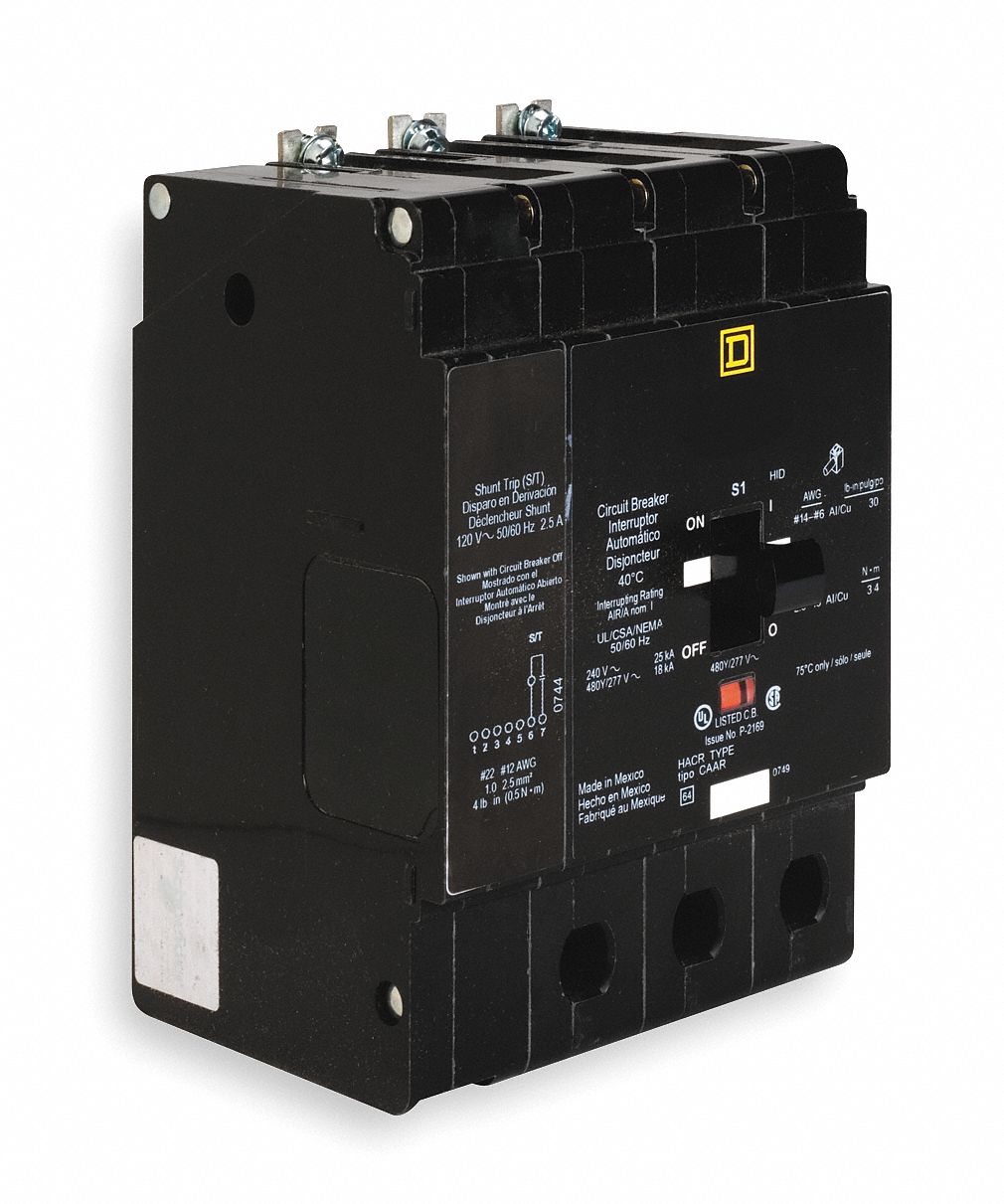

The SQUARE D EDB34020SA is a 20 A, three-phase miniature circuit breaker from the EDB & EGB Series, designed for bolt-on installation. It has an AC voltage rating of 277/480V AC and a maximum AIR rating of 18kA at 277/480V AC. This 3-pole breaker is intended for use with Square D NF Panelboards.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 277/480V |
| Amps | 20 A |
| Type | Three Phase, 18kA at 277/480V AC |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| For Use With | Square D NF Panelboards |
| Max. AIR Rating | 18kA at 277/480V AC |
| AC Voltage Rating | 277/480V AC |
| Manufacturer Part Number | EDB34020SA |
