Square D 3G-OTH-22580 — Spesifikasi Teknis

Name: Square D 3G-OTH-22580 SQUARE D Miniature Circuit Breaker: 40 A, 277/480V AC, Single Phase, 18kA at 277/480V AC, 2 Poles (MPN EDB24040). Key specifications — Phase: Single; Amps: 40 A; AC Voltage Rating: 277/480V AC; Max. AIR Rating: 18kA at 277/480V AC; For Use With: Square D NF Panelboards; Brand: SQUARE D.
Brand: Square D

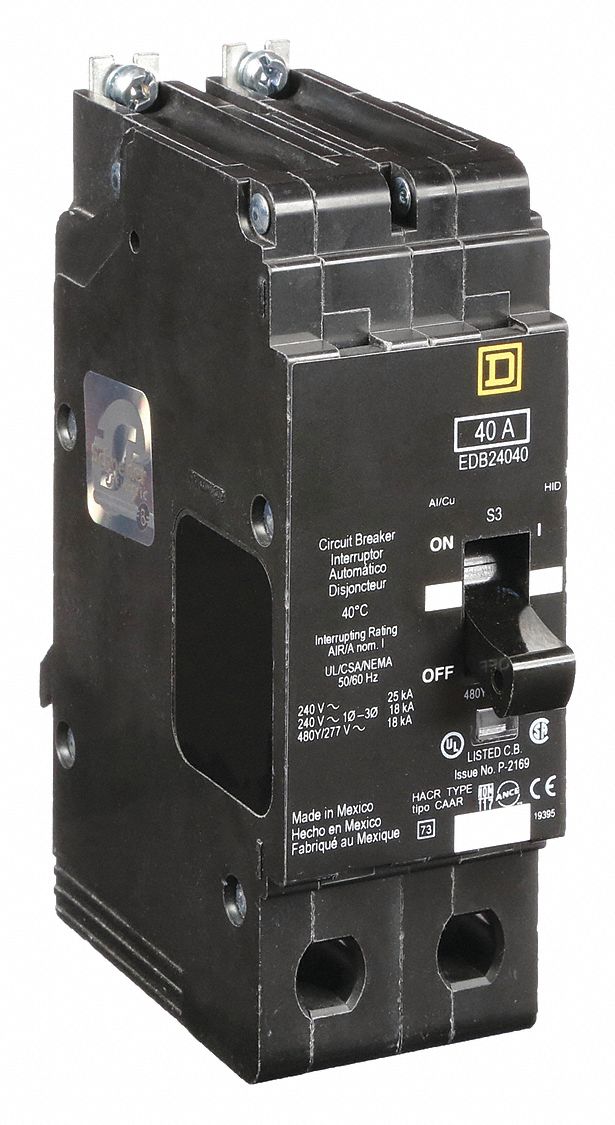

The SQUARE D EDB24040 is a 40 A, single-phase miniature circuit breaker from the EDB & EGB Series, designed for bolt-on installation. It carries an AC voltage rating of 277/480V AC and a maximum AIR rating of 18kA at 277/480V AC. This 2-pole breaker is intended for use with Square D NF Panelboards.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	277/480V
Amps	40 A
Type	Single Phase, 18kA at 277/480V AC
Brand	SQUARE D
Phase	Single
Poles	2
For Use With	Square D NF Panelboards
Max. AIR Rating	18kA at 277/480V AC
AC Voltage Rating	277/480V AC
Manufacturer Part Number	EDB24040
