Square D 3G-OTH-23334 — Spesifikasi Teknis

Name: Square D 3G-OTH-23334 SQUARE D Miniature Circuit Breaker: 45 A, 120/240V AC, Single Phase, 10kA at 120/240V AC, 2 Poles (MPN QOU245). Key specifications — Phase: Single; Amps: 45 A; AC Voltage Rating: 120/240V AC; Max. AIR Rating: 10kA at 120/240V AC; For Use With: Heating; Brand: SQUARE D.
Brand: Square D

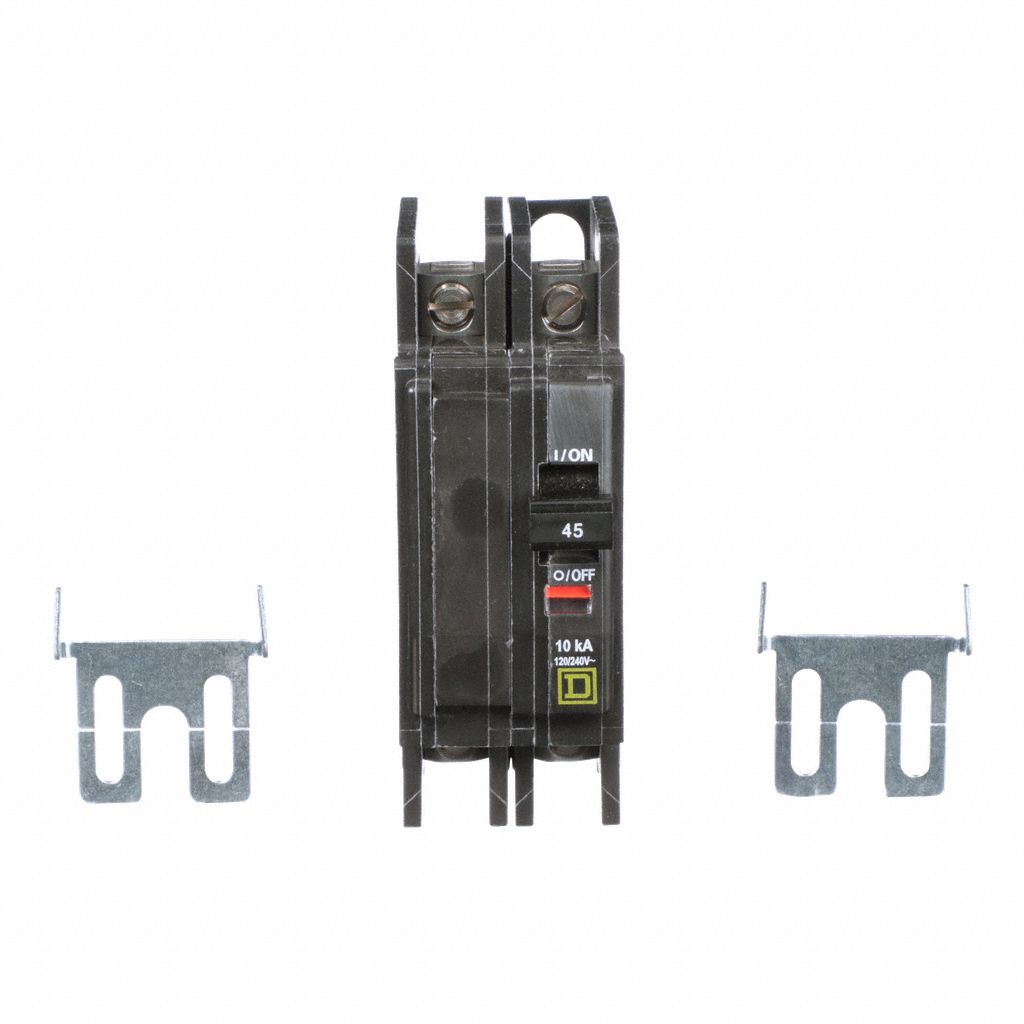

The SQUARE D QOU245 is a 45 A, single-phase, 2-pole miniature circuit breaker from the QOU Series, rated for 120/240V AC with a maximum AIR rating of 10kA at 120/240V AC. Designed for use with heating applications, this unit-mount breaker is manufactured by SQUARE D under part number QOU245.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	120/240V
Amps	45 A
Type	Single Phase, 10kA at 120/240V AC
Brand	SQUARE D
Phase	Single
Poles	2
For Use With	Heating
Max. AIR Rating	10kA at 120/240V AC
AC Voltage Rating	120/240V AC
Manufacturer Part Number	QOU245
