Square D 3G-OTH-28412 — Spesifikasi Teknis

Name: Square D 3G-OTH-28412 SQUARE D Pendant Control Station: (2) Push Buttons, 1NO/1NC, Start/Stop, NEMA 4, (2) Push Buttons (MPN 9001BW95Y). Key specifications — AC Contact Rating: 1.5 A @ 240 V; Action: Maintained/Momentary; DC Contact Rating: 0.2 A @ 600 V; Enclosure Material: Thermoplastic; Hub Style: Dead-End; Legend: Start/Stop; Operator Configuration: (2) Push Buttons; Brand: SQUARE D.
Brand: Square D

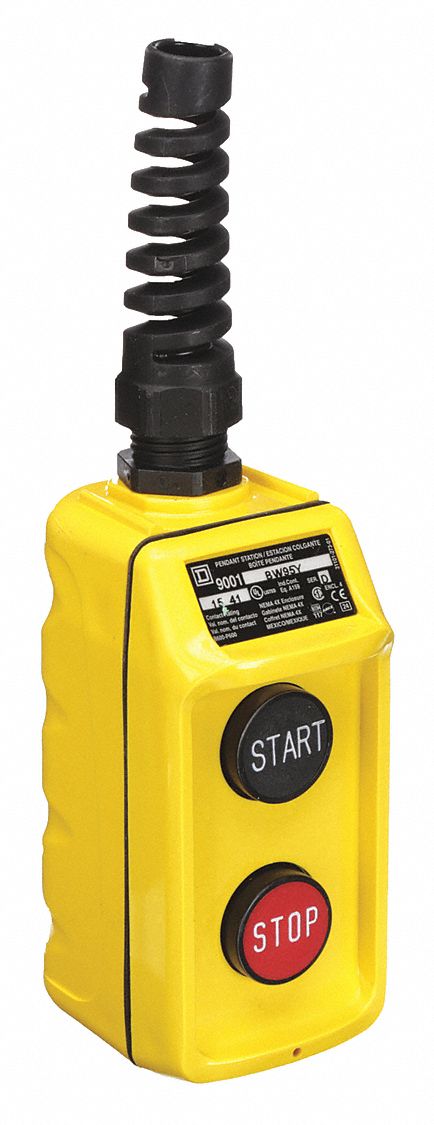

The SQUARE D Pendant Control Station (SKU 5FTP8, MPN 9001BW95Y) is a push-button pendant with two push buttons configured as Start/Stop with maintained/momentary action. Part of the 9001BW Series, it features a dead-end hub style, a thermoplastic enclosure, and AC contact ratings of 1.5 A @ 240 V with DC contact ratings of 0.2 A @ 600 V.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
Type	1NO/1NC, Start/Stop, NEMA 4, (2) Push Buttons
Brand	SQUARE D
Action	Maintained/Momentary
Legend	Start/Stop
Series	9001BW
Hub Style	Dead-End
AC Contact Rating	1.5 A @ 240 V
DC Contact Rating	0.2 A @ 600 V
Enclosure Material	Thermoplastic
Operator Configuration	(2) Push Buttons
Manufacturer Part Number	9001BW95Y
Operator Configuration Type	(2) Push Buttons
