Surge Trap 3G-OTH-23010 — Spesifikasi Teknis

Name: Surge Trap 3G-OTH-23010 SURGE TRAP Surge Protection Device: Single Phase, 240V AC, 320 V AC, 20 A Nominal Discharge Current (MPN STXR240P05N). Key specifications — Voltage: 240V AC; Max. Continuing Operating Voltage: 320 V AC; Voltage Protection Rating: 1800V (H-G, H-L, L-G, L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA; Brand: SURGE TRAP.
Brand: Surge Trap

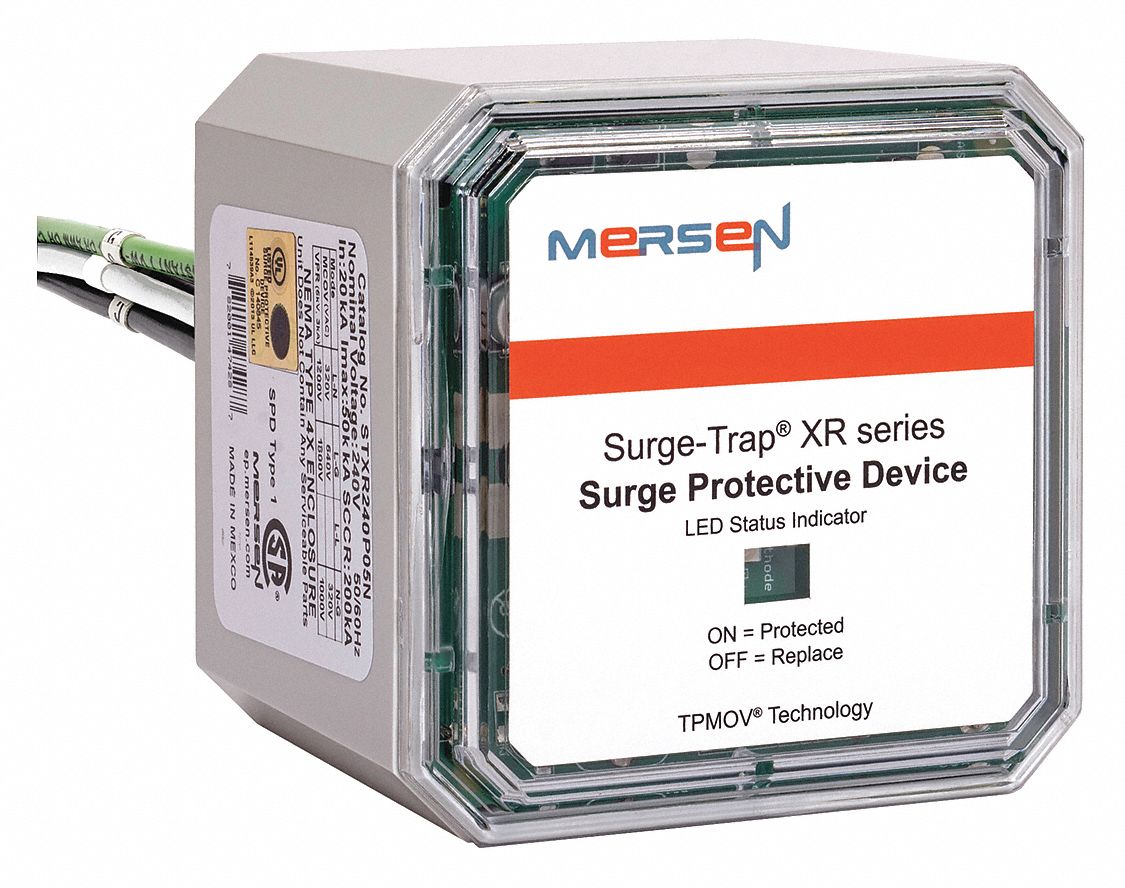

The SURGE TRAP Surge Protection Device: Single Phase (MPN STXR240P05N) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a max. continuing operating voltage of 320 V AC and a voltage protection rating of 1800V (H-G, H-L, L-G, L-L). The device offers a max. surge current per mode of 50kA and a nominal discharge current of 20 A.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	240V
Brand	SURGE TRAP
Voltage	240V AC
Enclosure Material	Polycarbonate
Manufacturer Part Number	STXR240P05N
Nominal Discharge Current	20 A
Voltage Protection Rating	1800V (H-G, H-L, L-G, L-L)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	320 V AC
