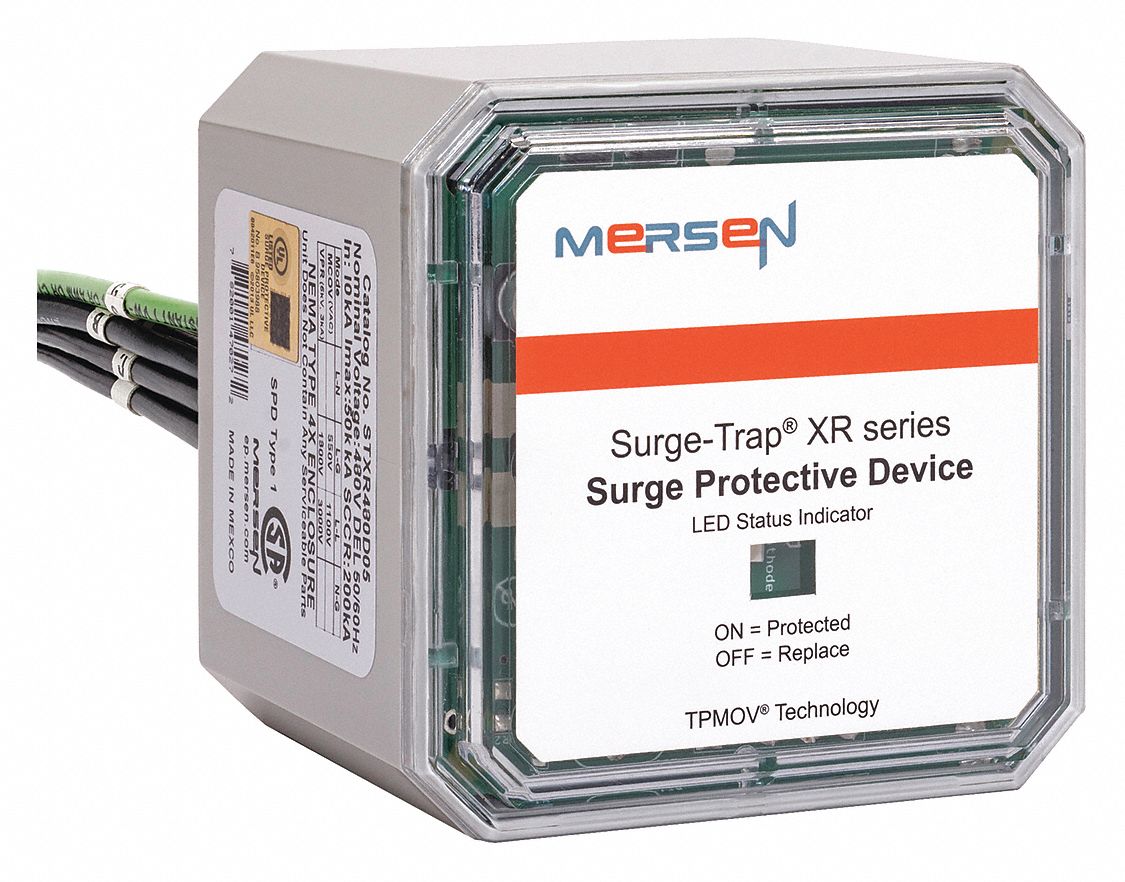

Surge Trap 3G-OTH-23125 — Spesifikasi Teknis

Name: Surge Trap 3G-OTH-23125 SURGE TRAP Surge Protection Device: Three Phase, 480V AC Delta, 1800V (L-G)/3000V (L-L), 550 V AC (MPN STXR480D05). Key specifications — Voltage: 480V AC Delta; Max. Continuing Operating Voltage: 550 V AC; Voltage Protection Rating: 3000V (L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA; Brand: SURGE TRAP.
Brand: Surge Trap

The SURGE TRAP Surge Protection Device: Three Phase is a chase-nipple external-mount SPD with a polycarbonate enclosure, designed for 480V AC Delta systems. It features a max. continuing operating voltage of 550 V AC, a voltage protection rating of 3000V (L-L), and a max. surge current per mode of 50kA (MPN STXR480D05).

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	550 V
Type	1800V (L-G)/3000V (L-L)
Brand	SURGE TRAP
Voltage	480V AC Delta
AC Delta	480V
Enclosure Material	Polycarbonate
Manufacturer Part Number	STXR480D05
Voltage Protection Rating	3000V (L-L)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	550 V AC
