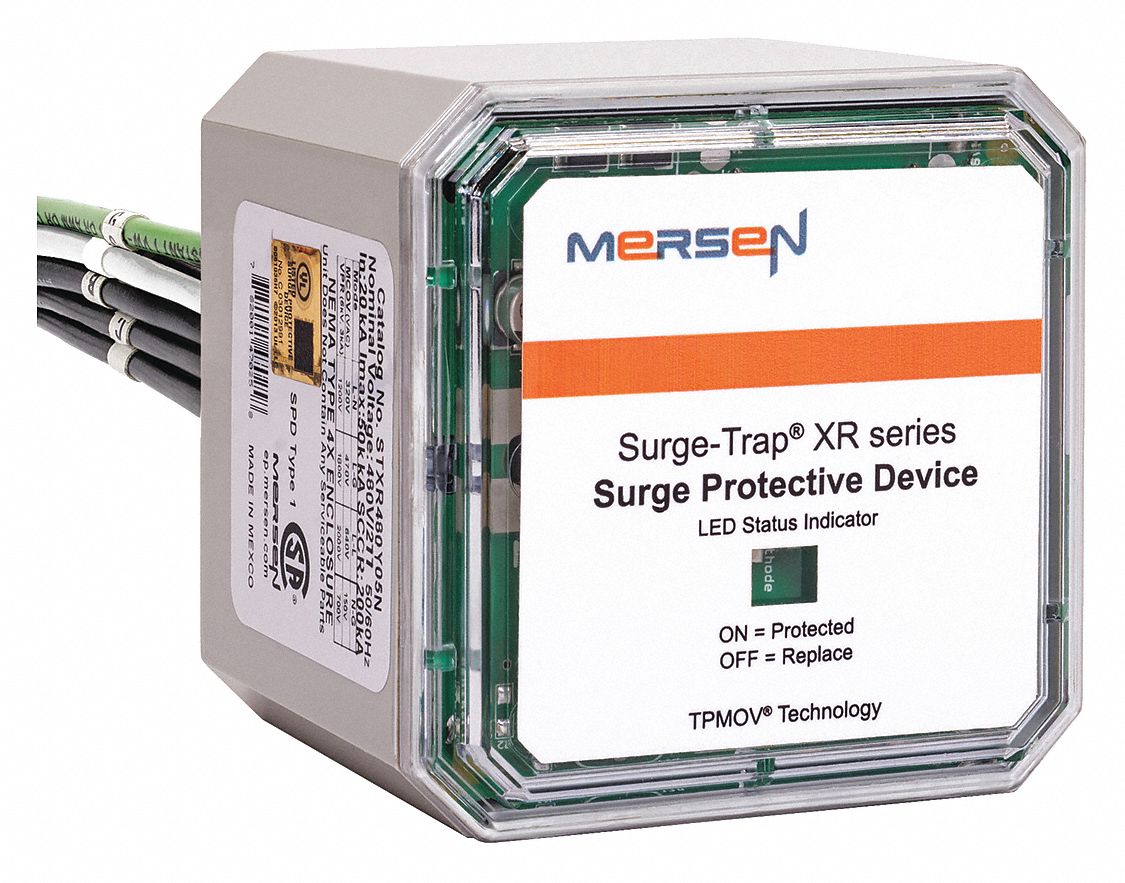

Surge Trap 3G-OTH-23043 — Spesifikasi Teknis

Name: Surge Trap 3G-OTH-23043 SURGE TRAP Surge Protection Device: Three Phase, 277/480V AC Wye, 320/640 V AC, Polycarbonate, 4X (MPN STXR480Y05N). Key specifications — Voltage: 277/480V AC Wye; Max. Continuing Operating Voltage: 320/640 V AC; Voltage Protection Rating: 1800V (H-G, H-L, L-G, L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 50kA; Brand: SURGE TRAP.
Brand: Surge Trap

The SURGE TRAP Surge Protection Device: Three Phase (SKU 55KN68) is a chase-nipple external-mount SPD with a polycarbonate enclosure. It operates at 277/480V AC Wye with a max. continuing operating voltage of 320/640 V AC and a voltage protection rating of 1800V (H-G, H-L, L-G, L-L). The device provides a max. surge current per mode of 50kA.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	320/640 V
Type	Polycarbonate, 4X
Brand	SURGE TRAP
AC Wye	277/480V
Voltage	277/480V AC Wye
Enclosure Material	Polycarbonate
Manufacturer Part Number	STXR480Y05N
Voltage Protection Rating	1800V (H-G, H-L, L-G, L-L)
Max. Surge Current Per Mode	50kA
Max. Continuing Operating Voltage	320/640 V AC
