Tempco 3G-OTH-65320 — Spesifikasi Teknis

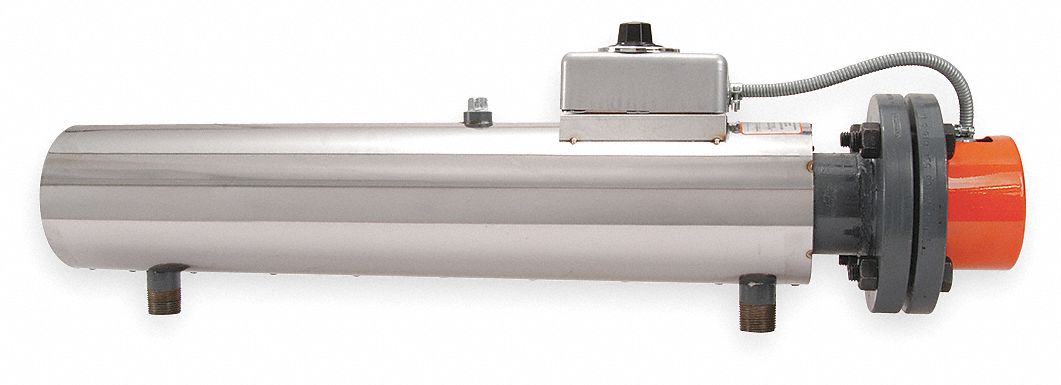

The TEMPCO Circulation Heater: 3 Phase is a pipeline immersion heater with a 3 in flange size and 48 W/sq in watt density. It operates with a control range of 60° to 250°F and features an Incoloy(R) 800 sheath and stainless steel screw plug. This 240V AC, 6,000 W unit is designed for industrial fluid heating applications.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| AC | 240V |
| NPT | 1 in |
| Type | 48 W/sq in |
| Watt | 6,000 W |
| Brand | TEMPCO |
| Flange Size | 3 in |
| Watt Density | 48 W/sq in |
| Control Range | 60° to 250°F |
| Sheath Material | Incoloy(R) 800 |
| Screw Plug Material | Stainless Steel |
| Manufacturer Part Number | CHF02339 |
