Tempco 3G-OTH-65303 — Spesifikasi Teknis

Name: Tempco 3G-OTH-65303 TEMPCO Circulation Heater: 3 Phase, 480V AC, 6,000 W Watt, 3 in Flange Size, 48 W/sq in (MPN CHF02340). Key specifications — Watt Density: 48 W/sq in; Screw Plug Material: Stainless Steel; Sheath Material: Incoloy(R) 800; Brand: TEMPCO; Control Range: 60° to 250°F; Flange Size: 3 in.
Brand: Tempco

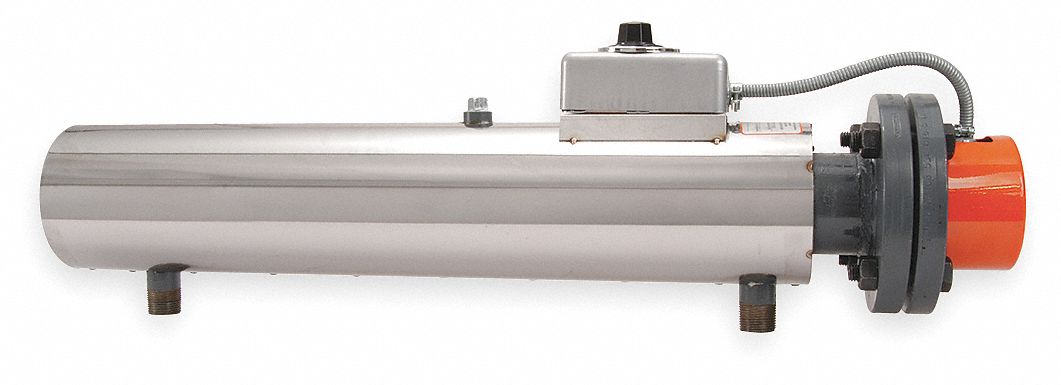

The TEMPCO Circulation Heater: 3 Phase is a pipeline immersion heater with a 3 in flange size, designed for direct installation into process lines. It operates at 480V AC and 6,000 W, with a watt density of 48 W/sq in and a control range of 60° to 250°F. The heater features an Incoloy(R) 800 sheath and a stainless steel screw plug, as specified by the manufacturer part number CHF02340.

Lihat Produk & Minta Penawaran

Spesifikasi Teknis

Parameter	Nilai
AC	480V
Type	48 W/sq in
Watt	6,000 W
Brand	TEMPCO
Flange Size	3 in
Watt Density	48 W/sq in
Control Range	60° to 250°F
Sheath Material	Incoloy(R) 800
Screw Plug Material	Stainless Steel
Manufacturer Part Number	CHF02340
