Timken 3G-OTH-121116 — Spesifikasi Teknis

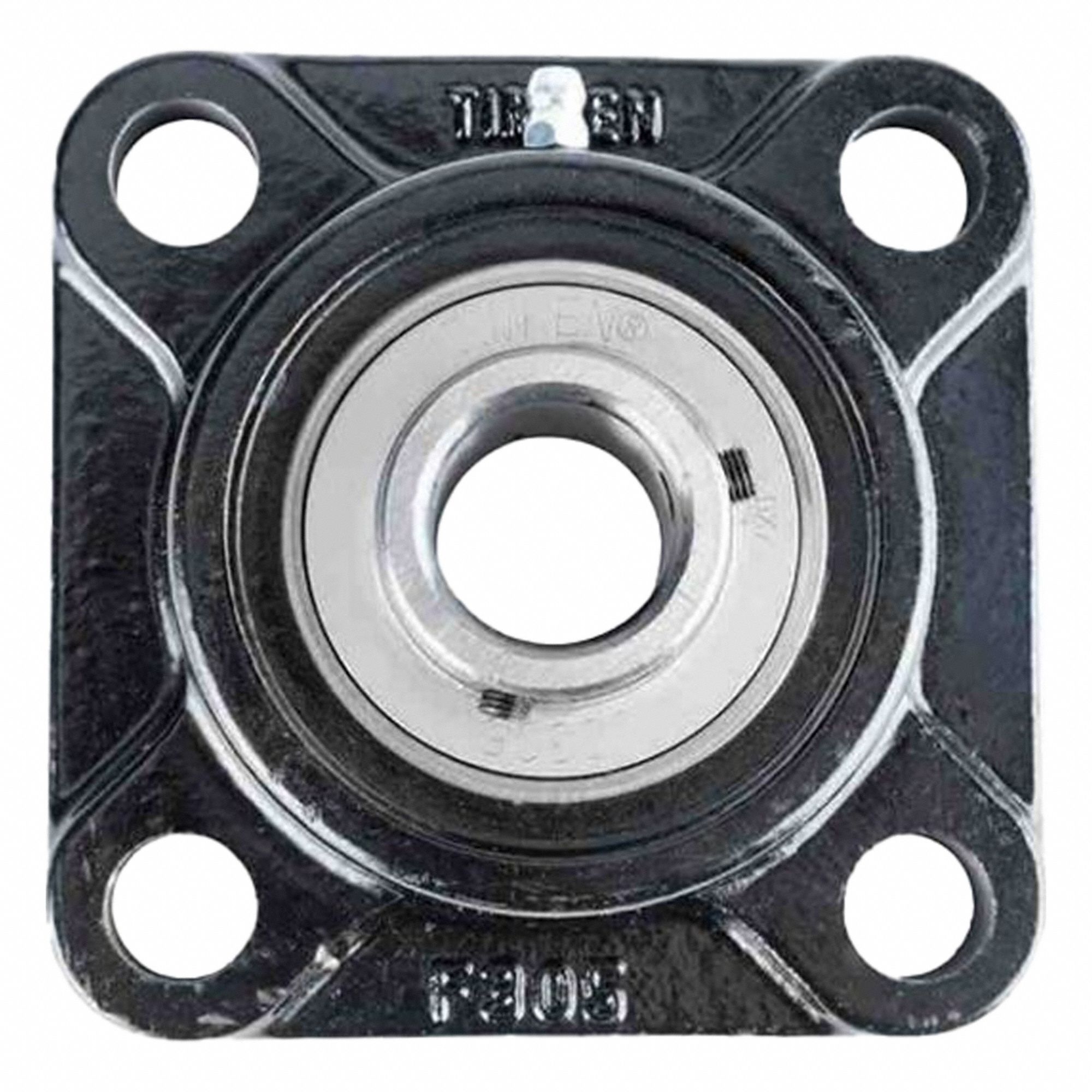

The TIMKEN Flange Mount Bearing is a general purpose radial ball bearing with a cylindrical 55 mm bore, designed for metric applications. This unit features a cast iron, non-split housing with set screw locking and is pre-lubricated with NLGI 2 lithium complex grease. It has a mounting bolt size of M20 and overall dimensions of 185 mm length and 71 mm width (MPN UCF311).
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Lg | 185 mm |
| Wd | 71 mm |
| Bore | 55 mm |
| Type | Cast Iron, Set Screws |
| Brand | TIMKEN |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | NLGI 2 Lithium Complex Grease |
| Mounting Bolt Size | M20 |
| System Of Measurement | Metric |
| Manufacturer Part Number | UCF311 |
