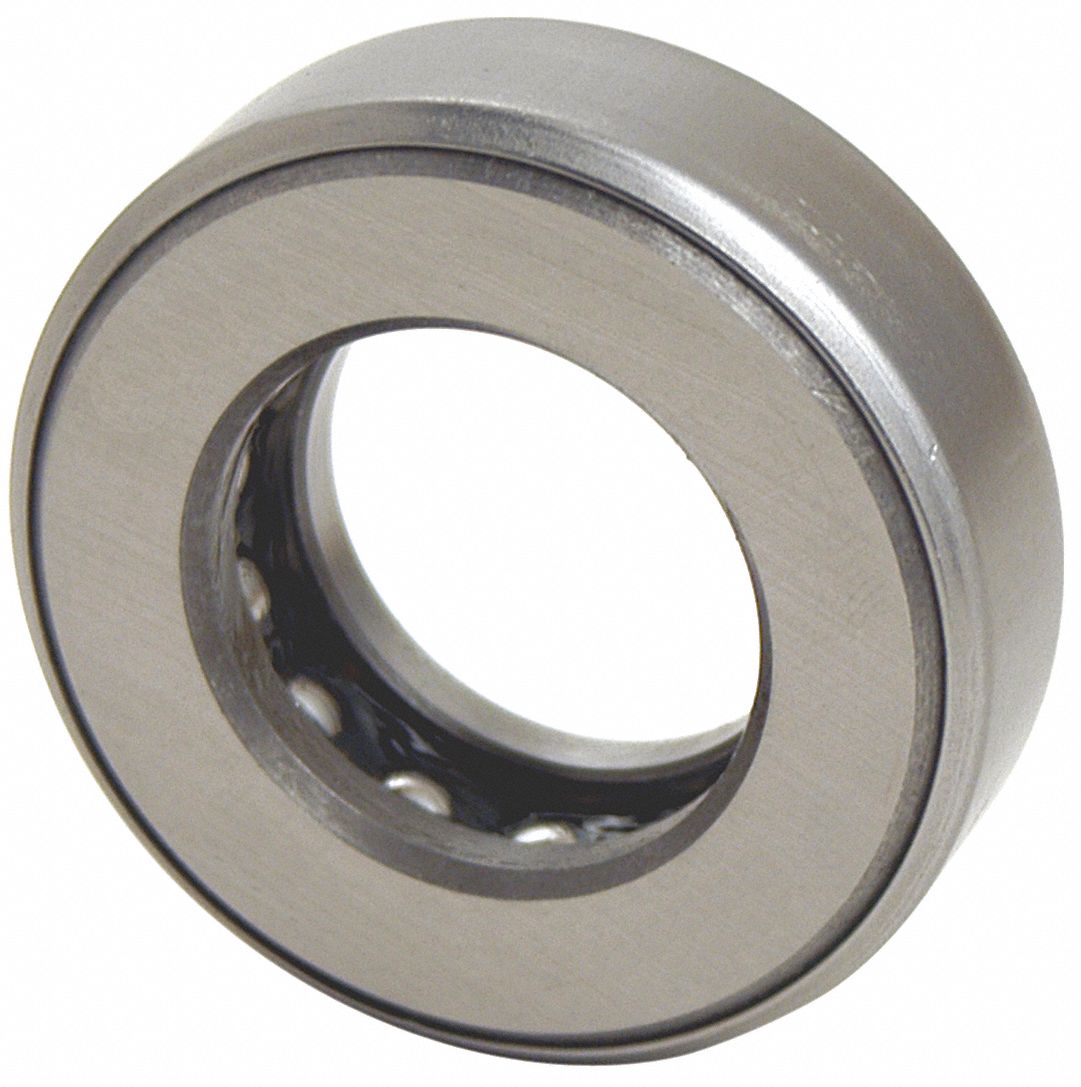

Tritan 3G-OTH-109959 — Spesifikasi Teknis
The TRITAN D22 is an inch-system banded ball thrust bearing from the D Series, featuring a 1 13/16 in bore diameter, 3 3/32 in outside diameter, and 0.813 in overall width. It is constructed with AISI 52100 ball material and has a maximum speed of 1,300 RPM with grease lubrication.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | TRITAN |
| Bore Dia | 1 13/16 in |
| Overall Wd | 0.813 in |
| Outside Dia | 3 3/32 in |
| Maximum Speed | 1,300 RPM Grease |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D22 |
| Manufacturer Part Number | D22 |
