Tritan 3G-OTH-110016 — Spesifikasi Teknis

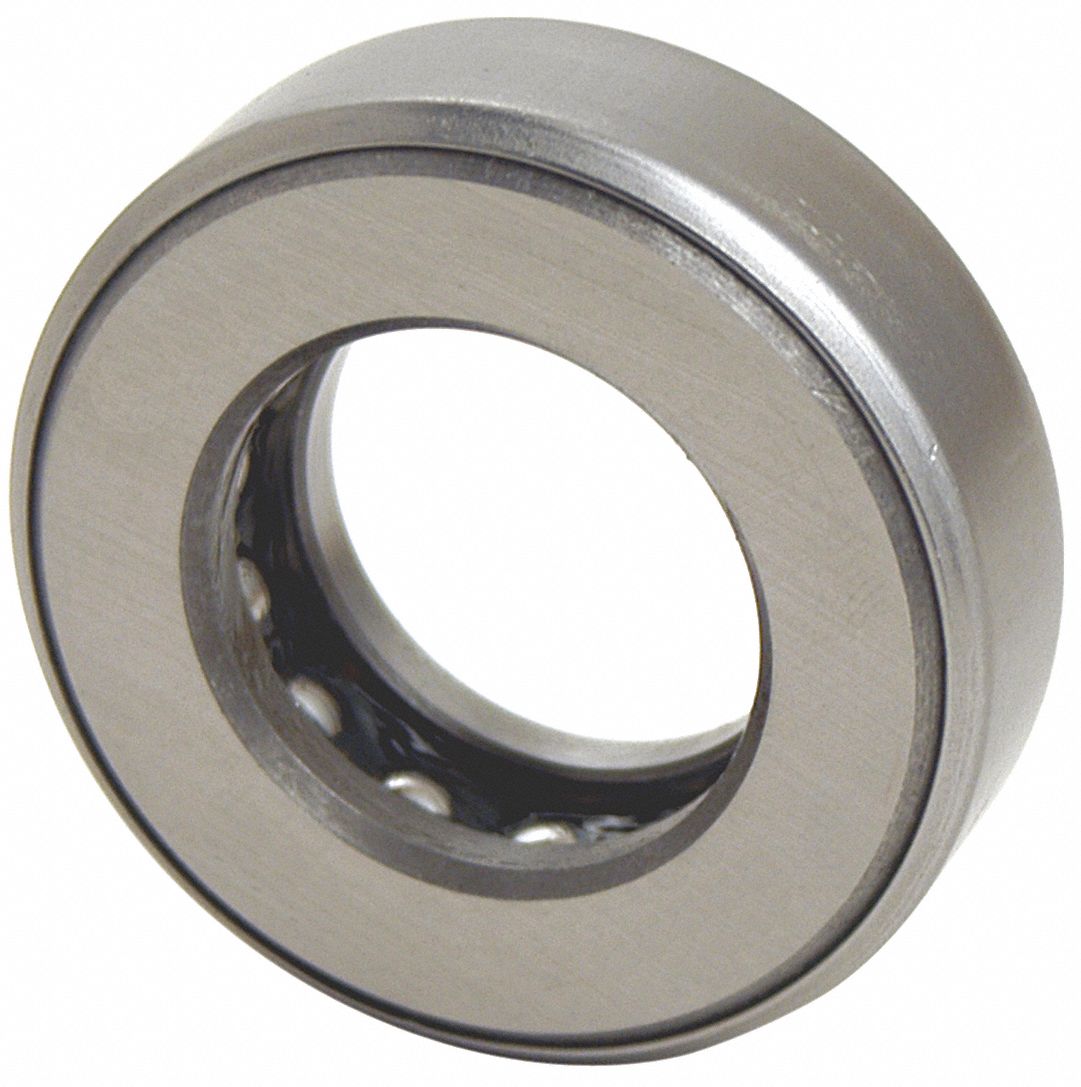

The TRITAN D24 is an inch-system banded ball thrust bearing from the D Series, featuring a 1 15/16 in bore diameter, 3 7/32 in outside diameter, and 0.813 in overall width. It is constructed with AISI 52100 ball material grade and has a maximum speed of 1,925 RPM in oil. This bearing is identified by the bearing industry number D24.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Brand | TRITAN |
| Bore Dia | 1 15/16 in |
| Overall Wd | 0.813 in |
| Outside Dia | 3 7/32 in |
| Maximum Speed | 1,925 RPM Oil |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D24 |
| Manufacturer Part Number | D24 |
