Tritan 3G-OTH-110534 — Spesifikasi Teknis

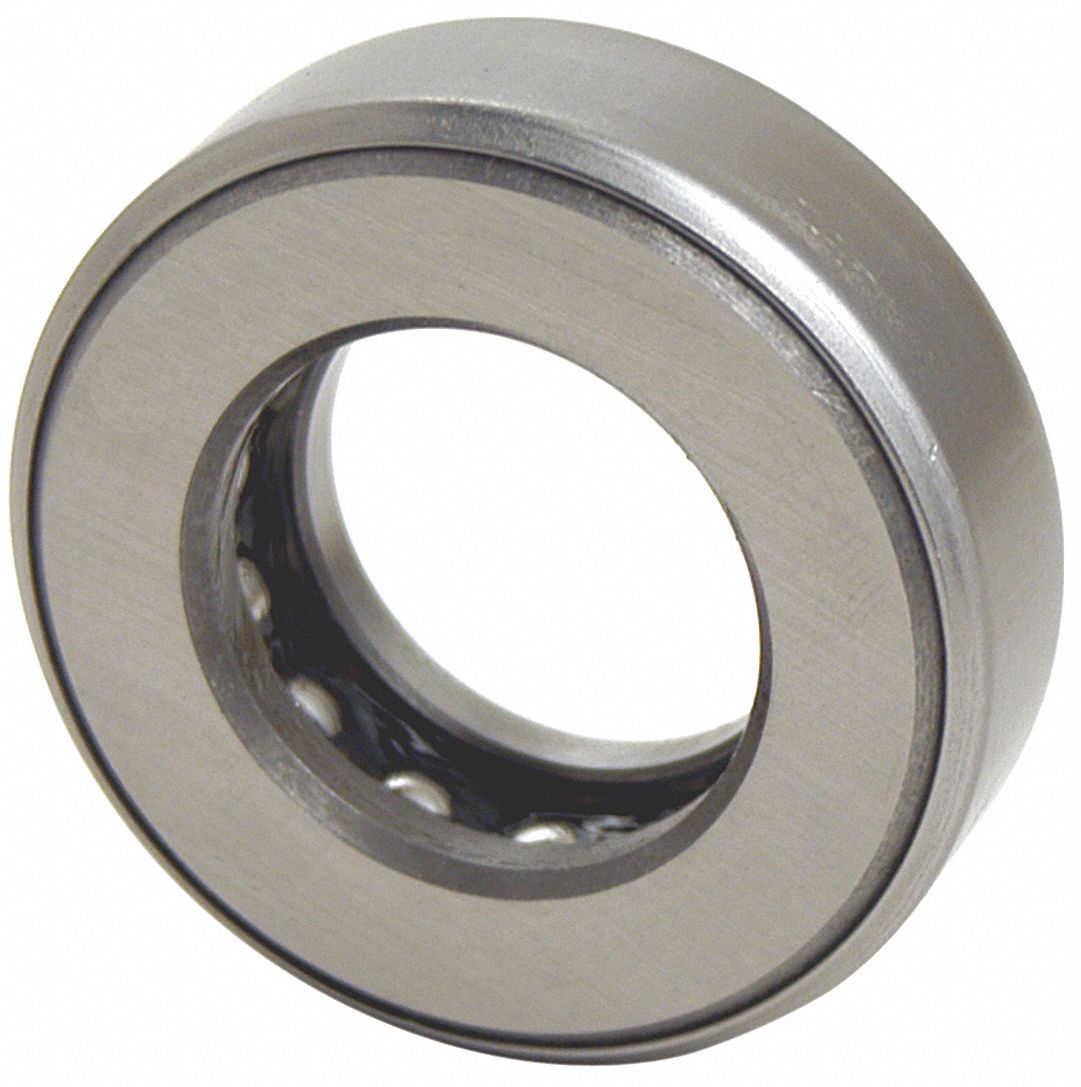

The TRITAN D37 is an inch-system banded ball thrust bearing from the D Series, featuring a 2 3/4 in bore diameter, 4 15/32 in outside diameter, and 1 in overall width with a grooved design. It is constructed with AISI 52100 grade ball material and has a maximum speed of 1,475 RPM in oil lubrication.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Grooved |
| Brand | TRITAN |
| Bore Dia | 2 3/4 in |
| Overall Wd | 1 in |
| Outside Dia | 4 15/32 in |
| Maximum Speed | 1,475 RPM Oil |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D37 |
| Manufacturer Part Number | D37 |
