Tritan 3G-OTH-110283 — Spesifikasi Teknis

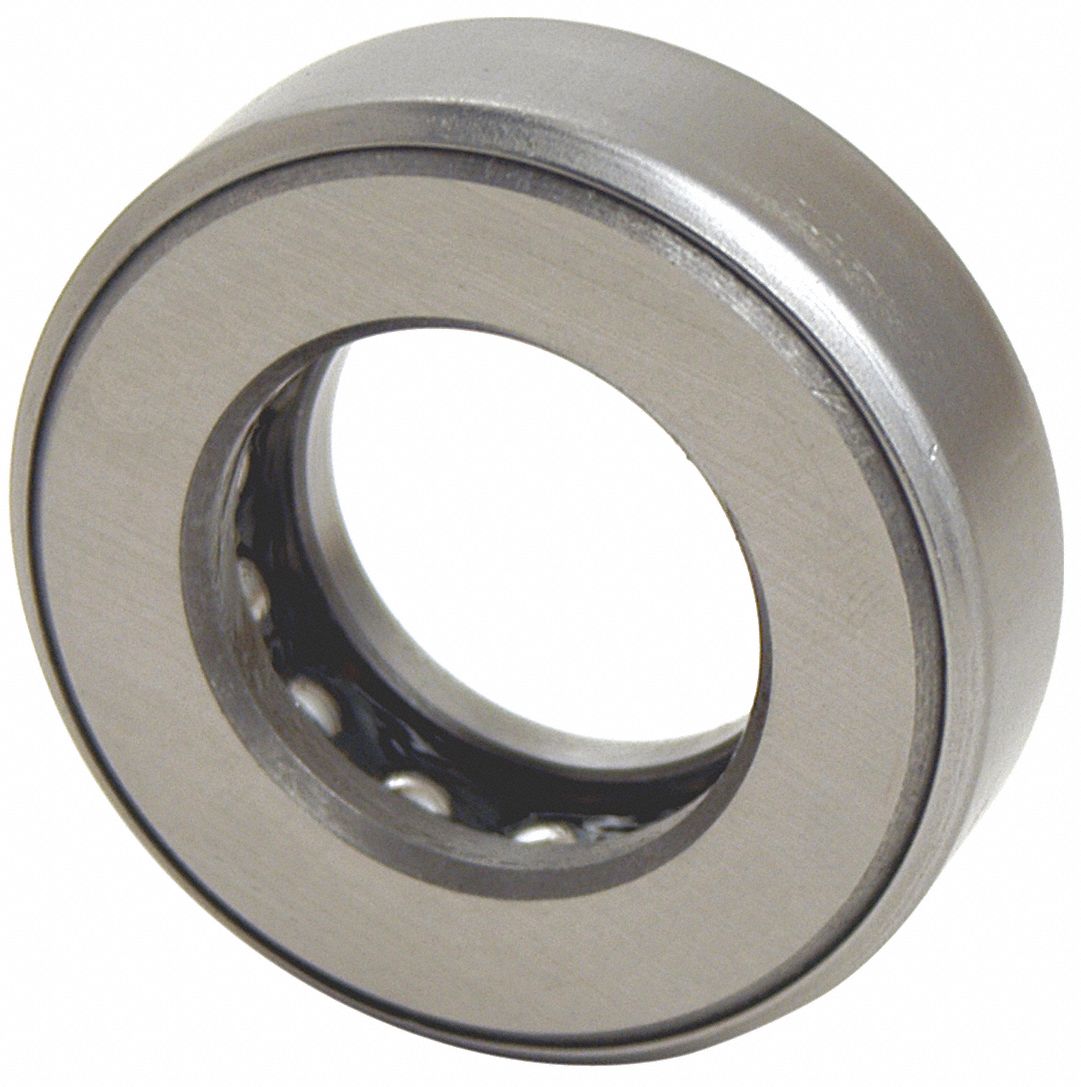

The TRITAN D39 is an inch-system banded ball thrust bearing from the D Series, featuring a 2 15/16 in bore diameter, 4 19/32 in outside diameter, and 1 in overall width. It is constructed with AISI 52100 steel balls and has a maximum speed of 1,460 RPM in oil. This bearing is identified by the bearing industry number D39.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Steel |
| Brand | TRITAN |
| Bore Dia | 2 15/16 in |
| Overall Wd | 1 in |
| Outside Dia | 4 19/32 in |
| Maximum Speed | 1,460 RPM Oil |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D39 |
| Manufacturer Part Number | D39 |
