Tritan 3G-OTH-110343 — Spesifikasi Teknis

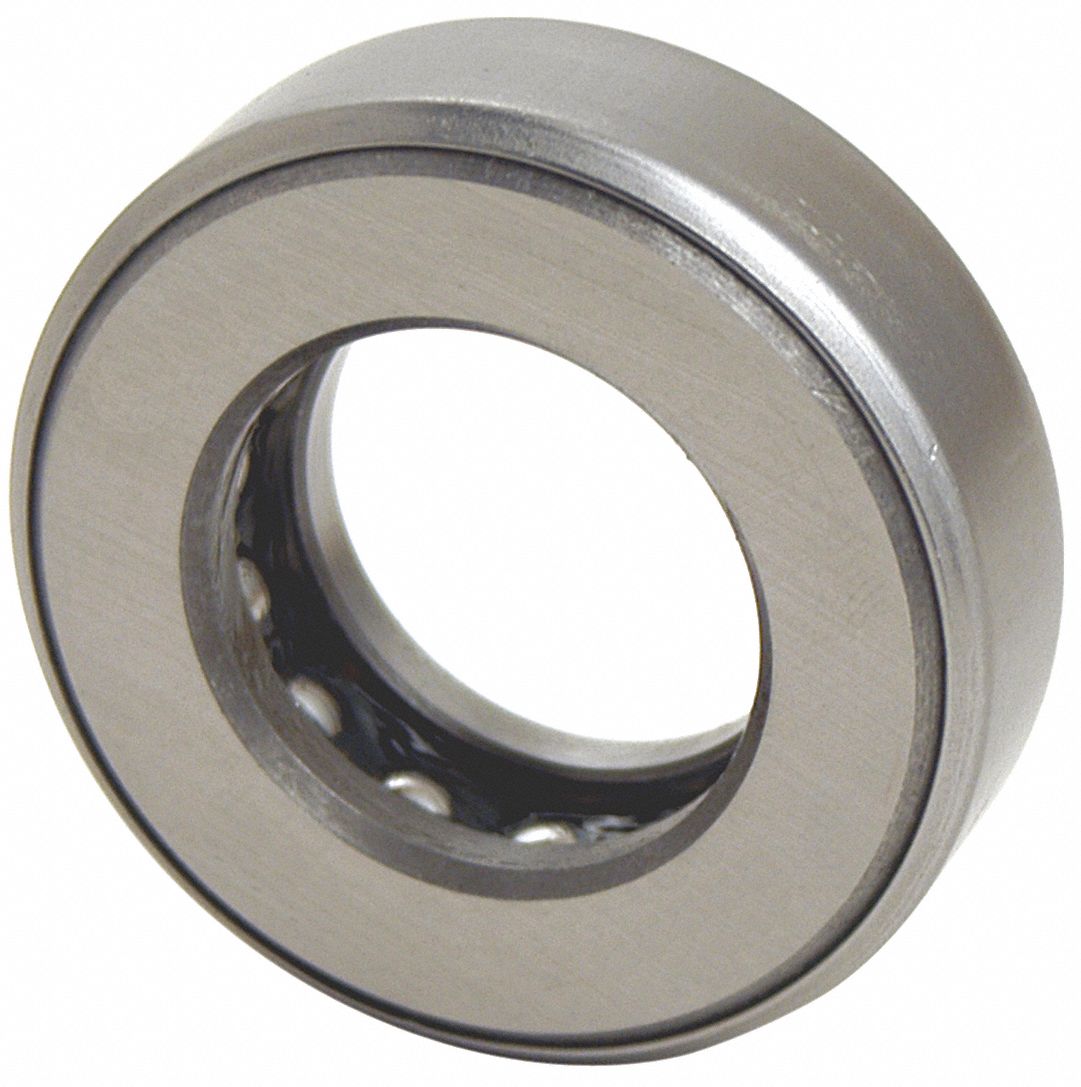

The TRITAN D41 is an inch-system banded ball thrust bearing from the D Series, featuring a grooved design with a 3 1/4 in bore diameter, 4 11/16 in outside diameter, and 1 in overall width. It is constructed with AISI 52100 ball material grade and has a maximum speed of 1,420 RPM in oil.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| Type | Grooved |
| Brand | TRITAN |
| Bore Dia | 3 1/4 in |
| Overall Wd | 1 in |
| Outside Dia | 4 11/16 in |
| Maximum Speed | 1,420 RPM Oil |
| Bearing Series | D Series |
| Ball Material Grade | AISI 52100 |
| Thrust Bearing Type | Banded Ball Thrust Bearing |
| System Of Measurement | Inch |
| Bearing Industry Number | D41 |
| Manufacturer Part Number | D41 |
