Tsubaki 3G-OTH-115752 — Spesifikasi Teknis

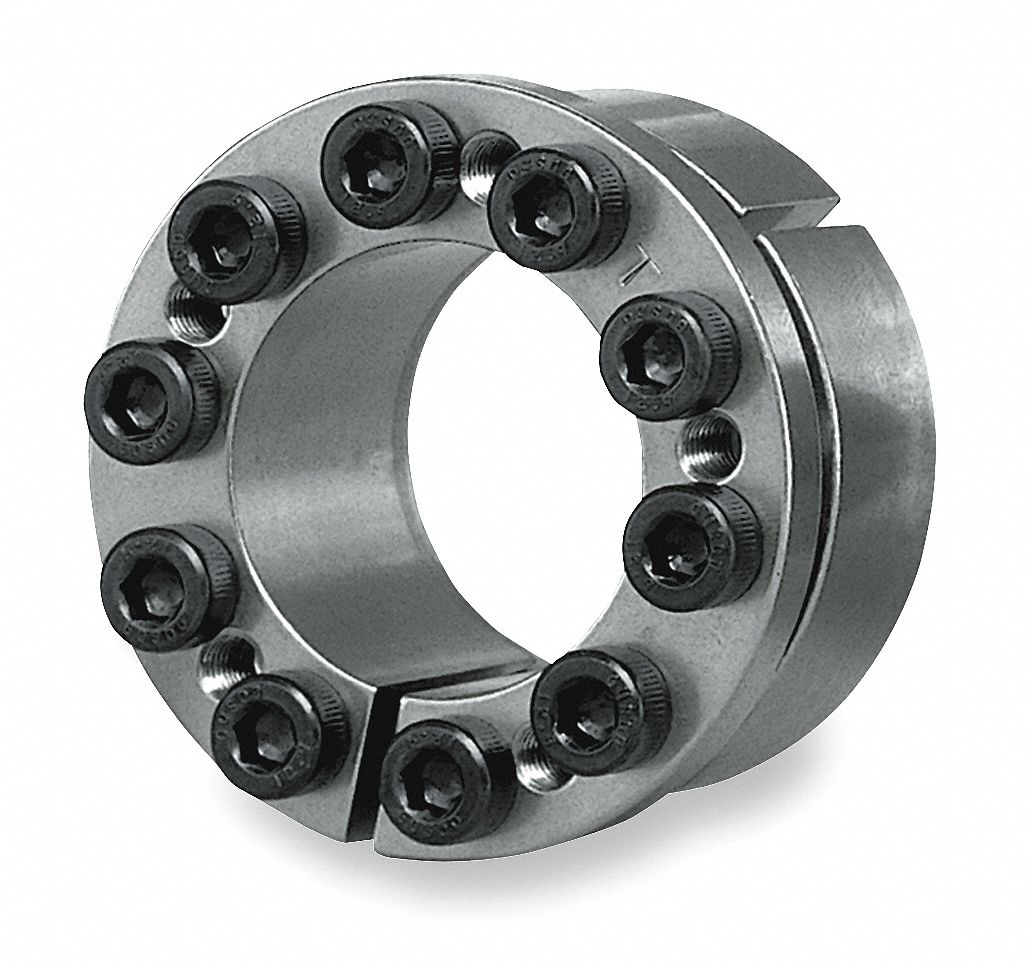

The TSUBAKI Keyless Bushing: Flanged is a multi-screw locking assembly keyless bushing designed for inch-system applications. It fits a 1 1/4 in shaft diameter, with a 2 1/8 in outer diameter and 1.102 in width, constructed from carbon steel (MPN PL1DKE). This flanged bushing provides a keyless shaft connection through its multi-screw locking mechanism.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 2 1/8 in |
| Wd | 1.102 in |
| Type | For 1 1/4 in Shaft Dia, Carbon Steel |
| Brand | TSUBAKI |
| Flange Type | Flanged |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Inch |
| Manufacturer Part Number | PL1DKE |
