Tsubaki 3G-OTH-112577 — Spesifikasi Teknis

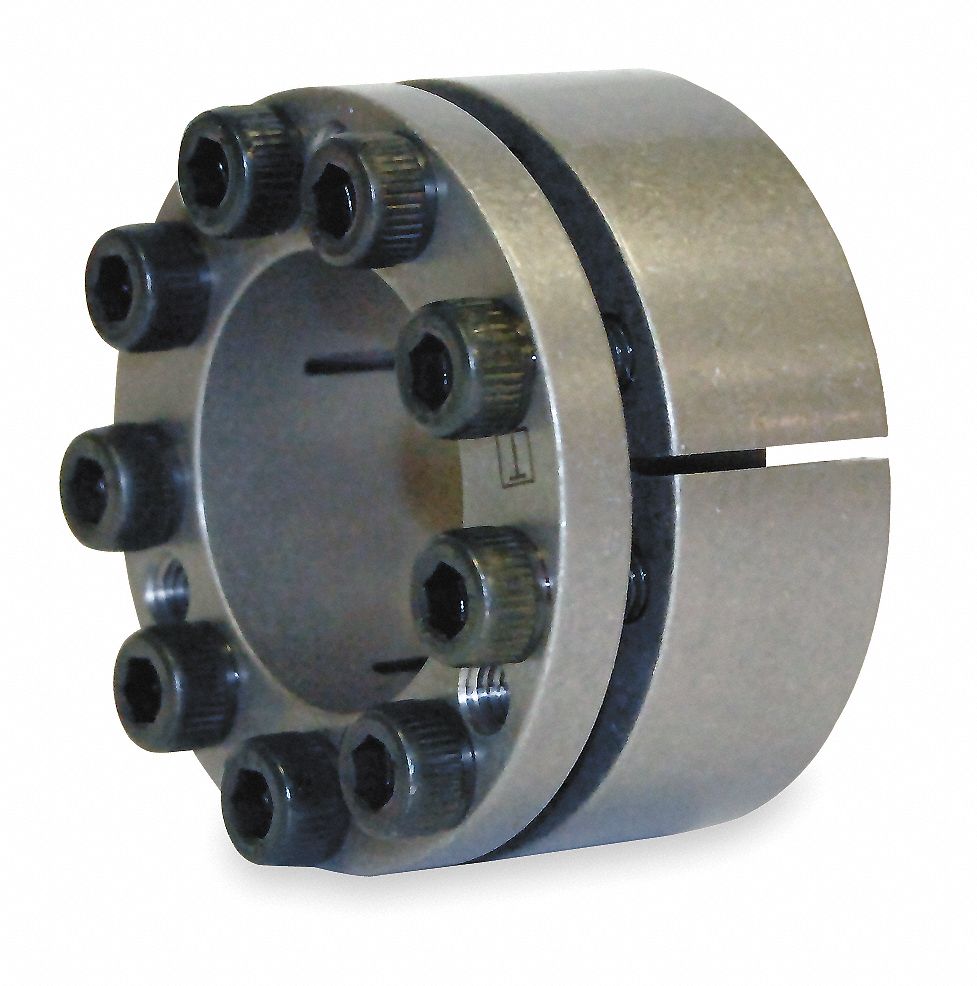

The TSUBAKI Keyless Bushing is a multi-screw locking assembly keyless bushing designed for a 1-inch shaft diameter. It features a 1 31/32-inch outer diameter, 1.094-inch width, and M6 x 18 screw thread size, with no flange. This inch-system component is identified by manufacturer part number PL1FL.
Spesifikasi Teknis
| Parameter | Nilai |
|---|---|
| OD | 1 31/32 in |
| Wd | 1.094 in |
| Type | M6 x 18 Screw Thread Size |
| Brand | TSUBAKI |
| Flange Type | None |
| Keyless Bushing Type | Multi-Screw Locking Assembly |
| System Of Measurement | Inch |
| Manufacturer Part Number | PL1FL |
